Xerox Phaser 4500 Service Manual

8-148 Phaser 4500 Service Manual
Stacker Rear Cover Interlock Switch
(PL23.1.18)
1. Remove the Stacker Rear Cover (page 8-133).
2. Remove the Stacker Cover (page 8-134).
3. Disconnect the wire harness from the Interlock Switch.
4. Compress the hooks on the top and bottom of the switch and slide it out of the
housing.

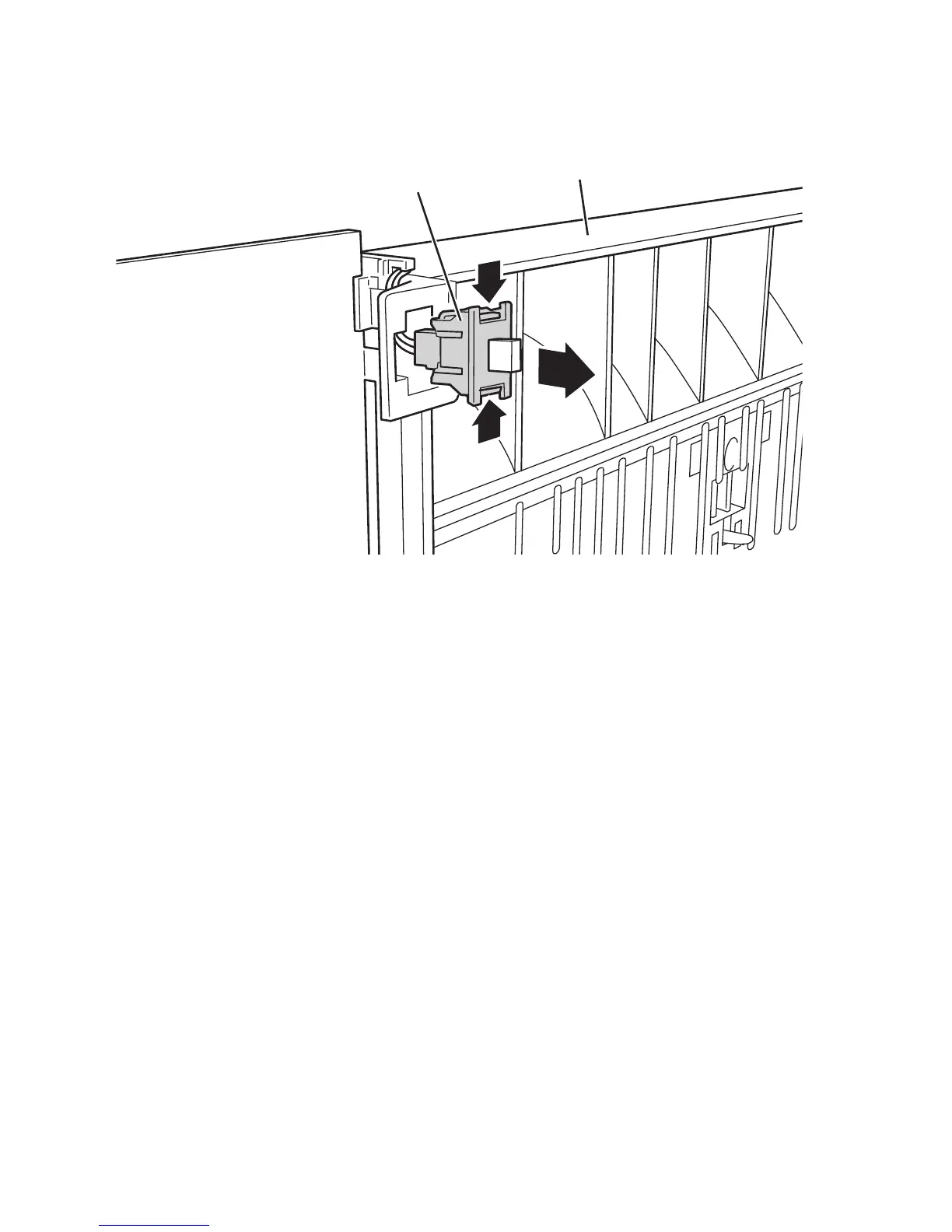

1. Interlock Switch 2. Housing
s4500-250
1
2
