FRU Disassembly 8-99
Option Paper Size Switch Assembly
(PL20.1.18)
1. Release the Feeder Size 1 Assembly Harness from the hooks of the 550 Left
Cover Frame.
2. Remove the two screws (gold tapping, 8 mm) that attach the Option Paper Size
Switch Assembly to the 550 Left Cover Frame. These screws are accessed
through square cutouts in the frame.
3. Shift the Option Paper Size Switch Assembly in the direction of the arrow to
release the bosses, and remove it from the 550 Left Cover Frame.
4. Disconnect the connector (P/J802) of the Feeder Size 1 Assembly Harness from
the connector of the Option Paper Size Switch Assembly.
Replacement Note:
â– It is important to ensure the two bosses are engaged properly before
tightening screws.

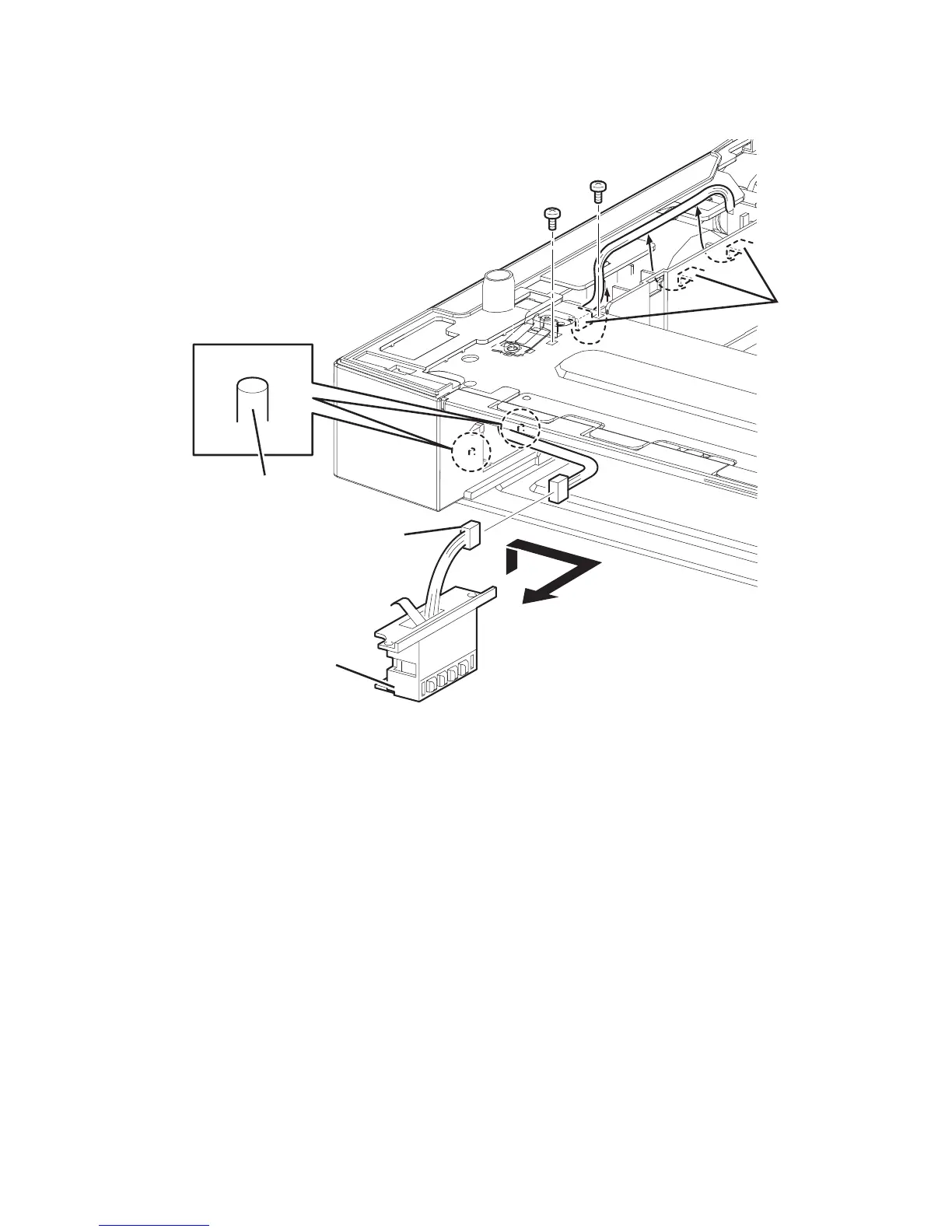

1. Hooks 3. Bosses
2. Option Paper Size Switch Assembly
1
2
3
P/J802
To Next Page
