FRU Disassembly 8-117

Left Cover

(PL21.1.25)

1. Remove the three screws (gold tapping, 8 mm) that attach the Left Cover.

2. Remove the Left Cover from the Duplex Unit Housing Cover.

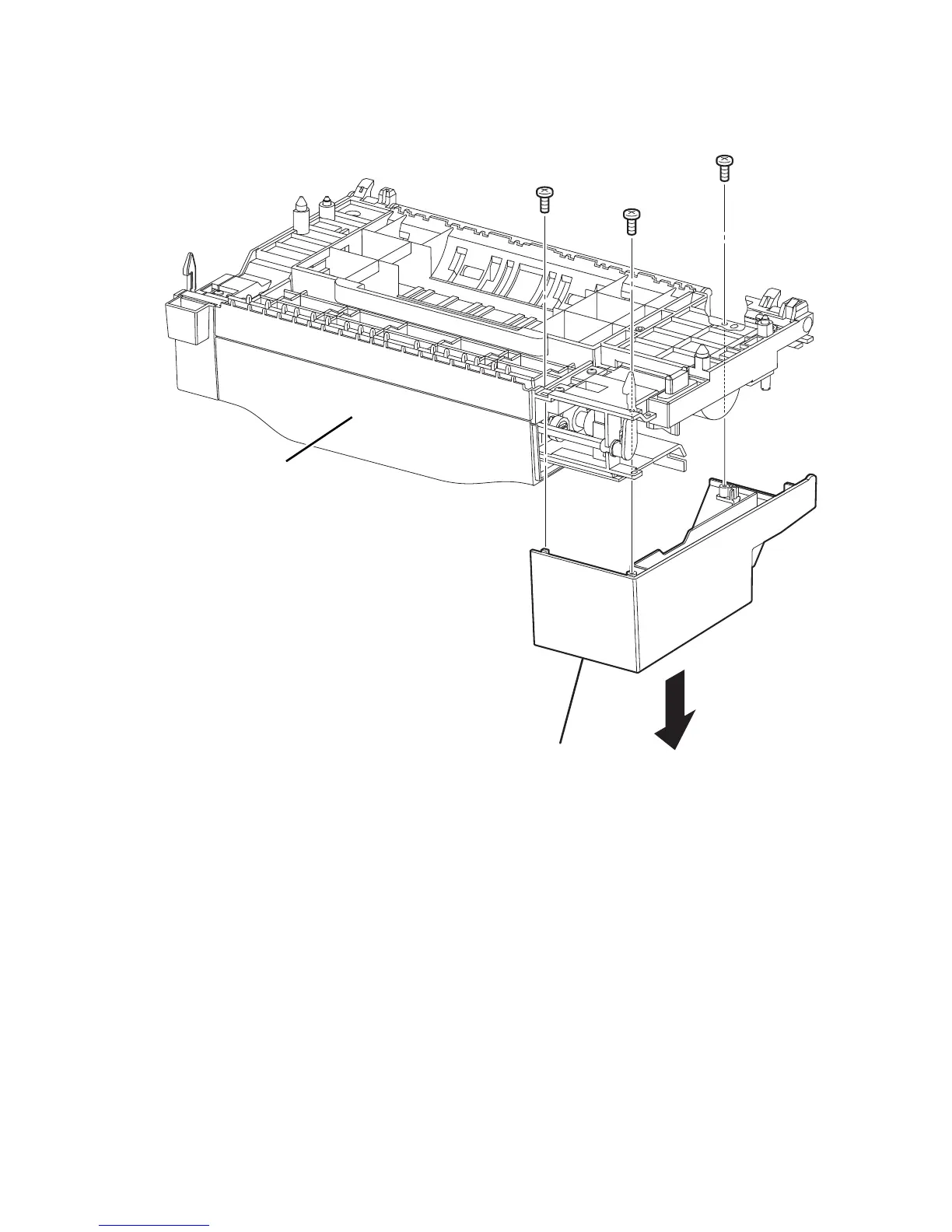

1. Duplex Unit Housing Cover 2. Left Cover

s4500-193

1

2
