Xerox Phaser 4500 Service Manual

FRU Disassembly 8-27
Registration Sensor
(PL5.1.30)
1. Remove the Main Fan (page 8-84).
2. Release the hooks that secure the Sensor Cover, and remove the Sensor Cover
from the Registration Chute Assembly.
3. Release the hooks that secure the Registration Sensor, and remove it from the
Sensor Cover.
4. Disconnect the connector (P/J241) of the Tray 1 Harness Assembly from the
Registration Sensor.
Replacement Note:
■ When the replacement is completed, verify the process direction registration
as described in “Checking Registration” on page 6-5.

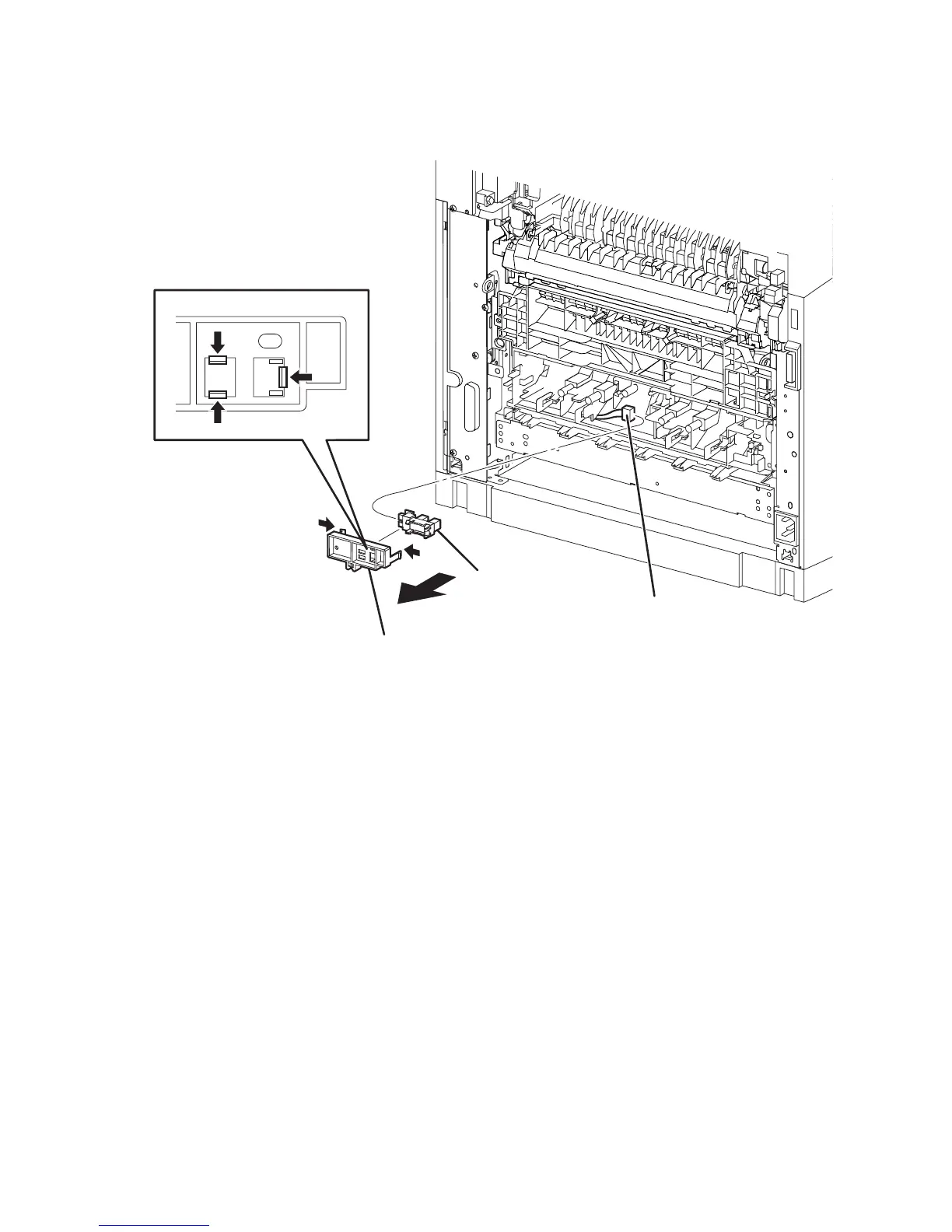

1. Registration Sensor 2. Sensor Cover
s4500-097
P/J 241
2
1
