10-14 Phaser 4500 Service Manual

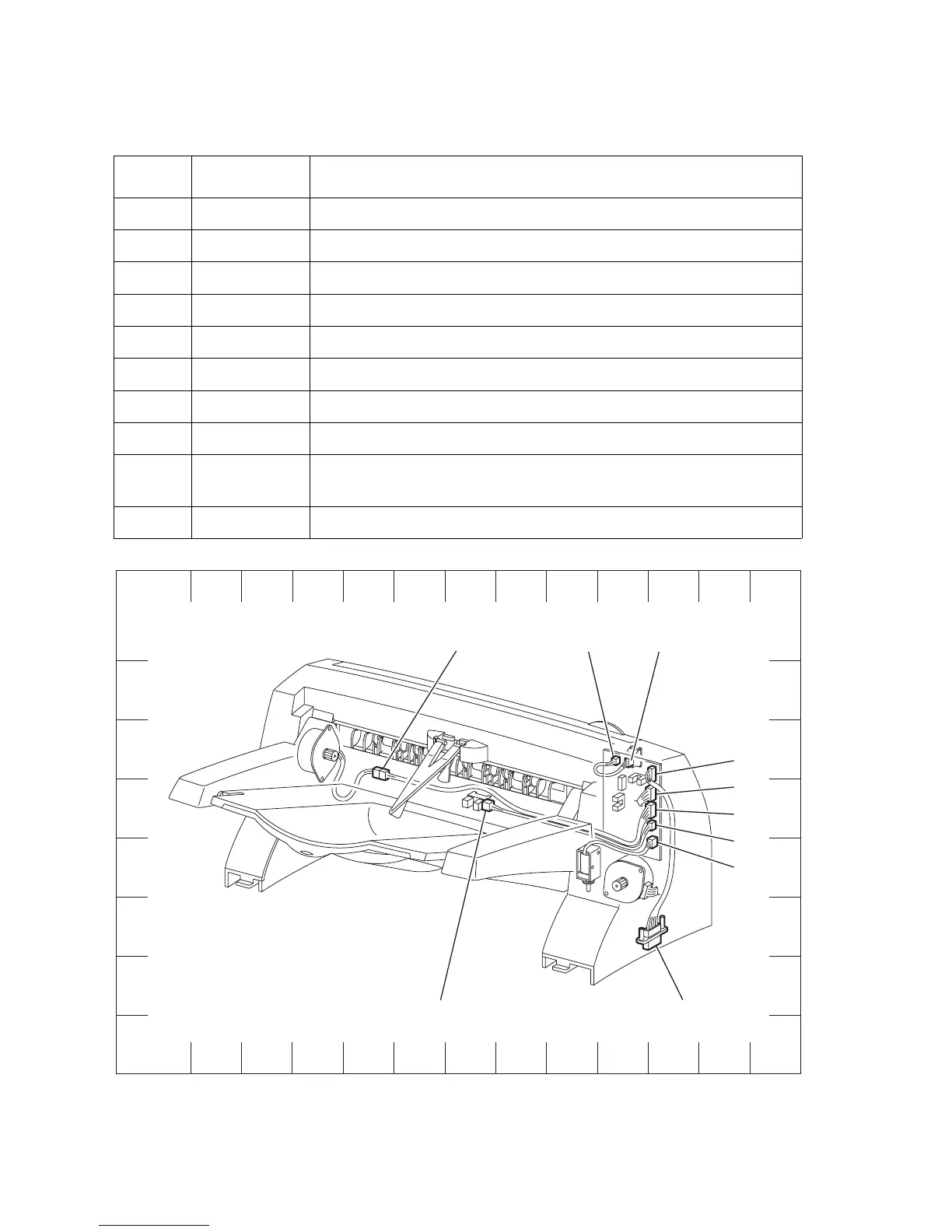

Stacker Plug/Jack Locator
P/J Locator Table
P/J Coordinates Remarks
70 J-403 Connects Stacker Harness 2 and the Stacker PWBA
71 J-404 Connects the Stacker Motor and Stacker PWBA
72 J-404 Connects the Offset Motor and Stacker PWBA
73 J-404 Connects the Stacker Sensor Harness and Stacker PWBA
74 I-403 Connects the Stacker Rear Cover Harness and Stacker PWBA
75 J-405 Connects the Gate Solenoid and Stacker PWBA
710 D-403 Connects the Stacker Motor Harness and Stacker Motor
730 F-404 Connects the Stacker Sensor and Stacker Sensor Harness
740 I-403 Connects the Stacker Rear Cover Switch and Stacker Rear Cover
Harness
3070 J-406 Connects Stacker Harness 2 and Stacker Harness 1
A
402
403
404
405
406
407
408
401
BCDEFGHI JKL
s4500-273
70
72
74
710
71
73
75
3070730
740
