Wiring Diagrams 10-27

Optional 550-Sheet Feeder

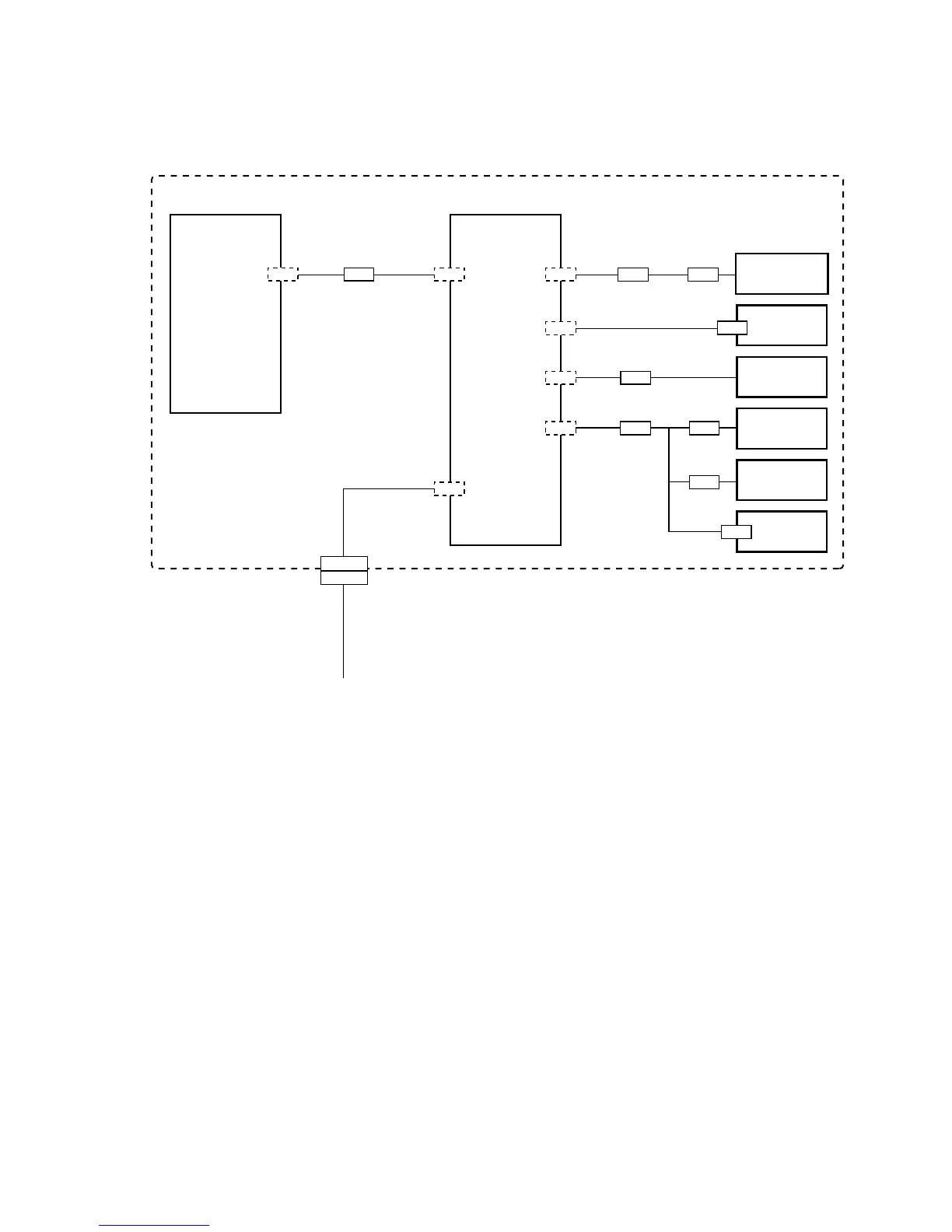

550-Sheet Feeder General Wiring Diagram

Note

The printer can have up to two Optional 550-Sheet Paper Feeders installed.

Paper Size

Switch Assembly

550-Sheet Feeder

PWBA

HVPS/

Engine Logic

PWBA

Feeder Motor

Feed Clutch

Turn Roller

Clutch

No Paper

Sensor

Low Paper

Sensor

P/J81

P/J80P/J83

P/J84

P/J20

P/J2083

P/J82

P/J85

P/J855 P/J853

P/J854

P/J820

P/J801 P/J802

P/J852

P/J8483

P/J2083

P/J810

s4500-241
