Xerox Phaser 4500 Service Manual

FRU Disassembly 8-133
Stacker Rear Cover
(PL23.1.4)
1. Open the rear cover about 1in. (2cm).
2. While pressing the door either to the left or right, lift the opposite end upward to
clear the boss from the hinge in the Stacker Cover.

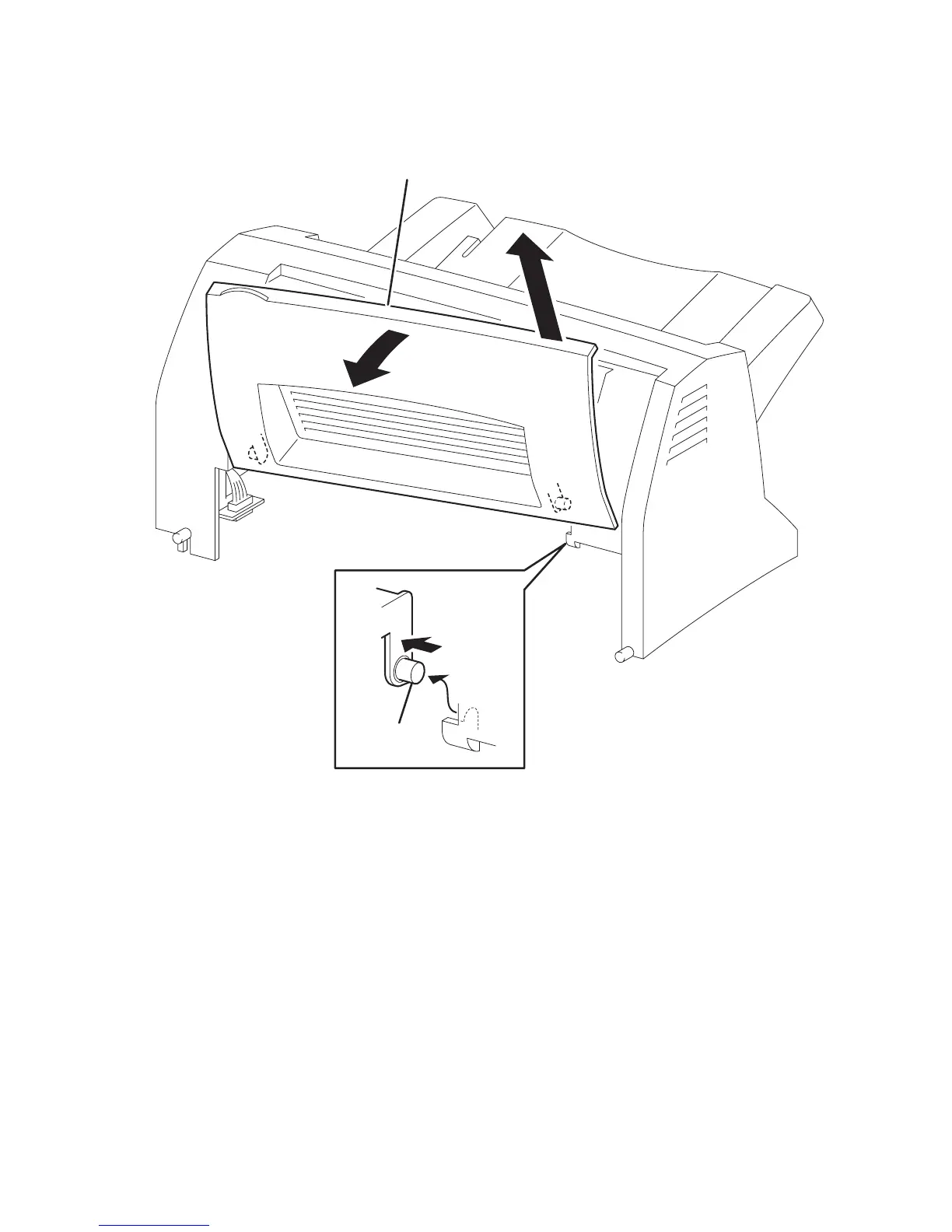

1. Rear Cover 2. Boss
s4500-199
1
2
