8-42 Phaser 4500 Service Manual

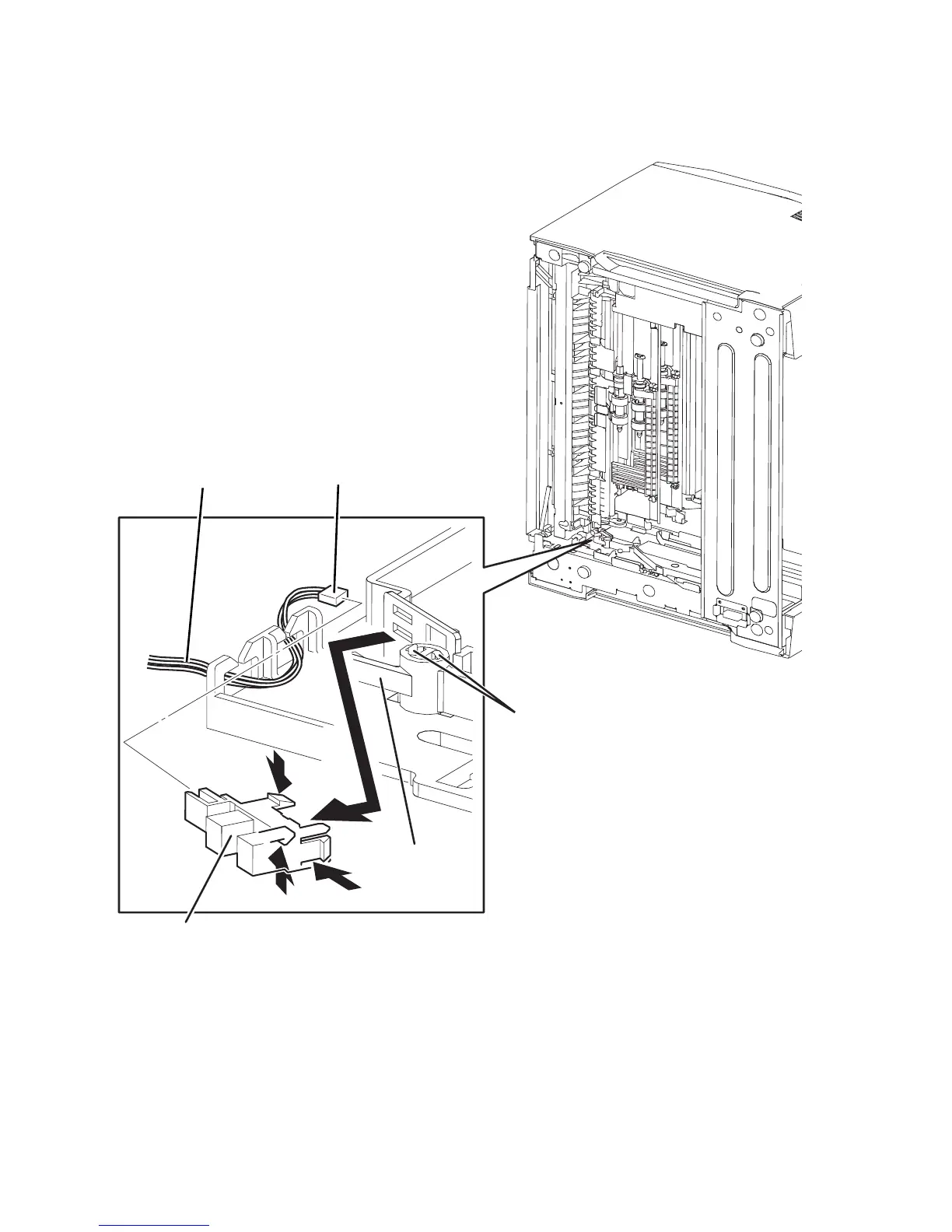

Low Paper Sensor/Actuator

(PL7.1.4)

1. Low 1 Harness Assembly 3. Latch hooks

2. Low Paper Sensor 4. Actuator

s4500-110

1

2

4

P/J 260

3
