Print-Quality Troubleshooting 5-11
Registration (Lead Edge-to-Trail Edge)
Actions and Questions Yes No

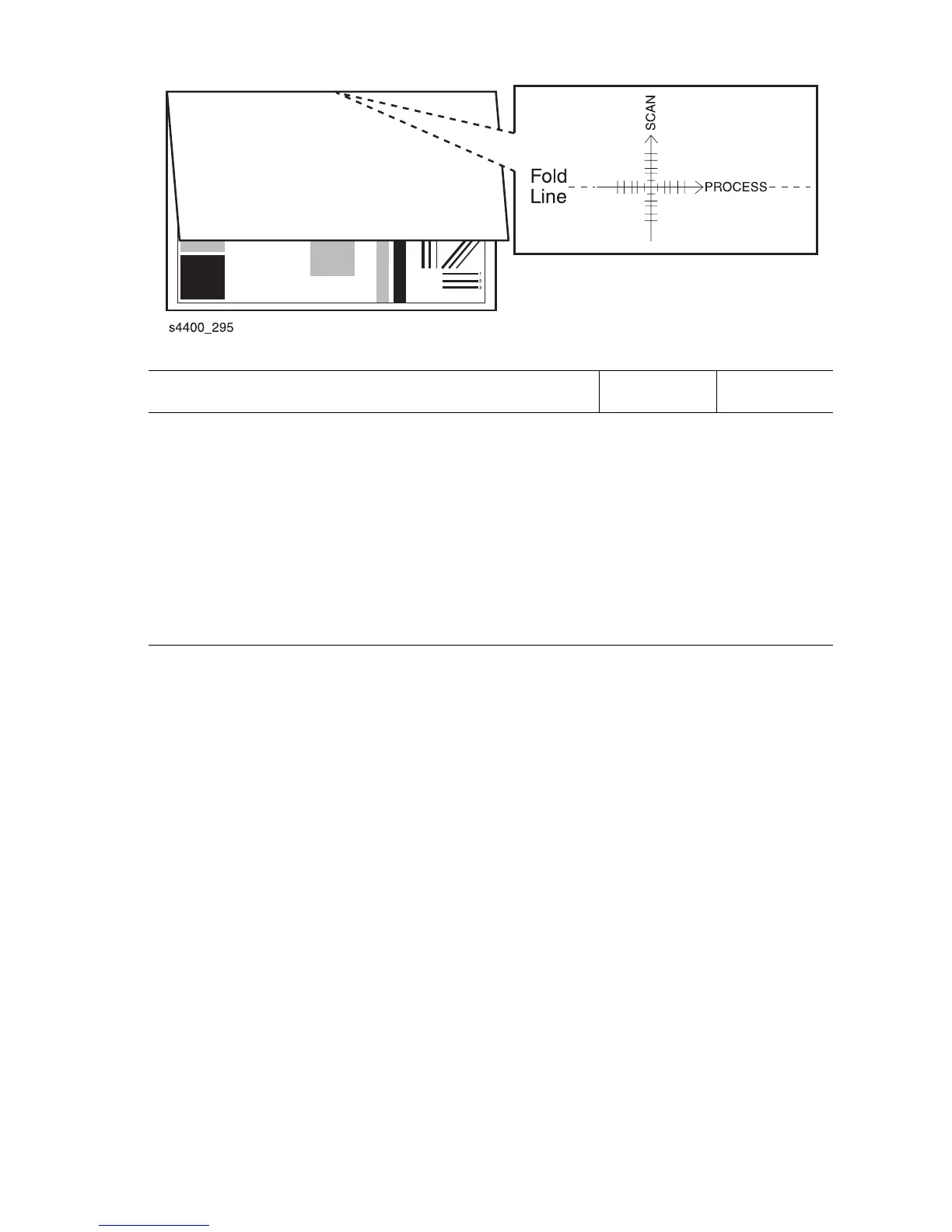

Measure the registration on two consecutive test prints:
1. Fold the paper in half (Lead Edge-to-Trail Edge).
2. Observe the fold line of the paper with reference to the
cross hairs of the target.
Is the fold within +/- 2.0 mm of the target cross hairs
(each line on the target is 1 mm).
The printed
test patterns
meet the
Lead Edge-
to-Trail Edge
Registration
Specification.
Go to
“Skewed
Image” on
page 5-44.
Go to
“Registration”
on page 5-47.
