Xerox Phaser 4500

FRU Disassembly 8-87
I/P Shield Window
(PL12.1.15)
1. Remove the Right Cover (page 8-7).
2. Remove the two screws that secure the Shield Window to the IP Shield
Assembly.
3. Remove the Shield Window.

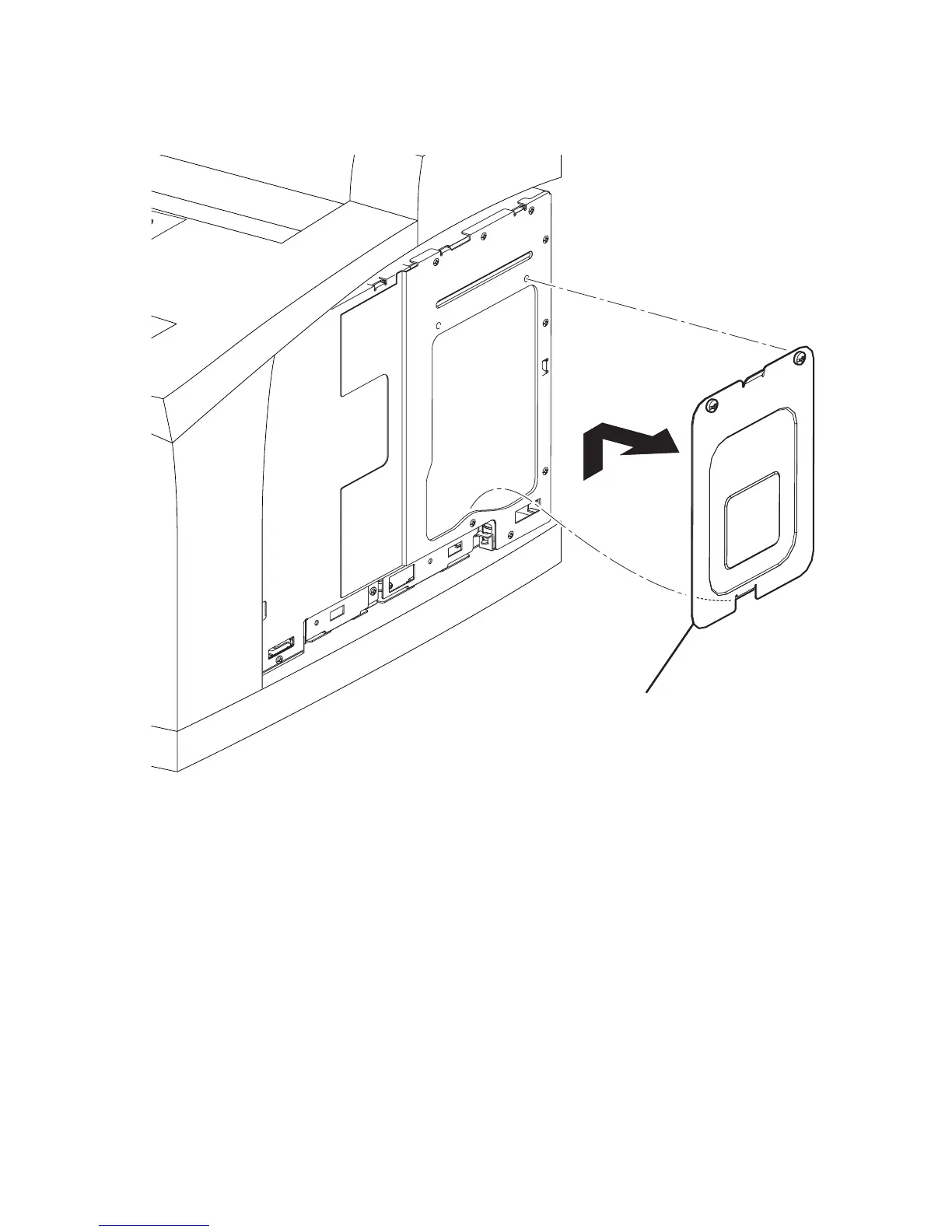

1. Shield Window
s4500-149
