Xerox Phaser 4500

FRU Disassembly 8-75
Print Engine: Electrical
LVPS Shield Plate
(PL12.1.3)
1. Remove the Front Cover (page 8-12).
2. Remove the five screws (silver, 6 mm) that attach the LVPS Shield Plate to the
frame.
3. Remove the LVPS Shield Plate.

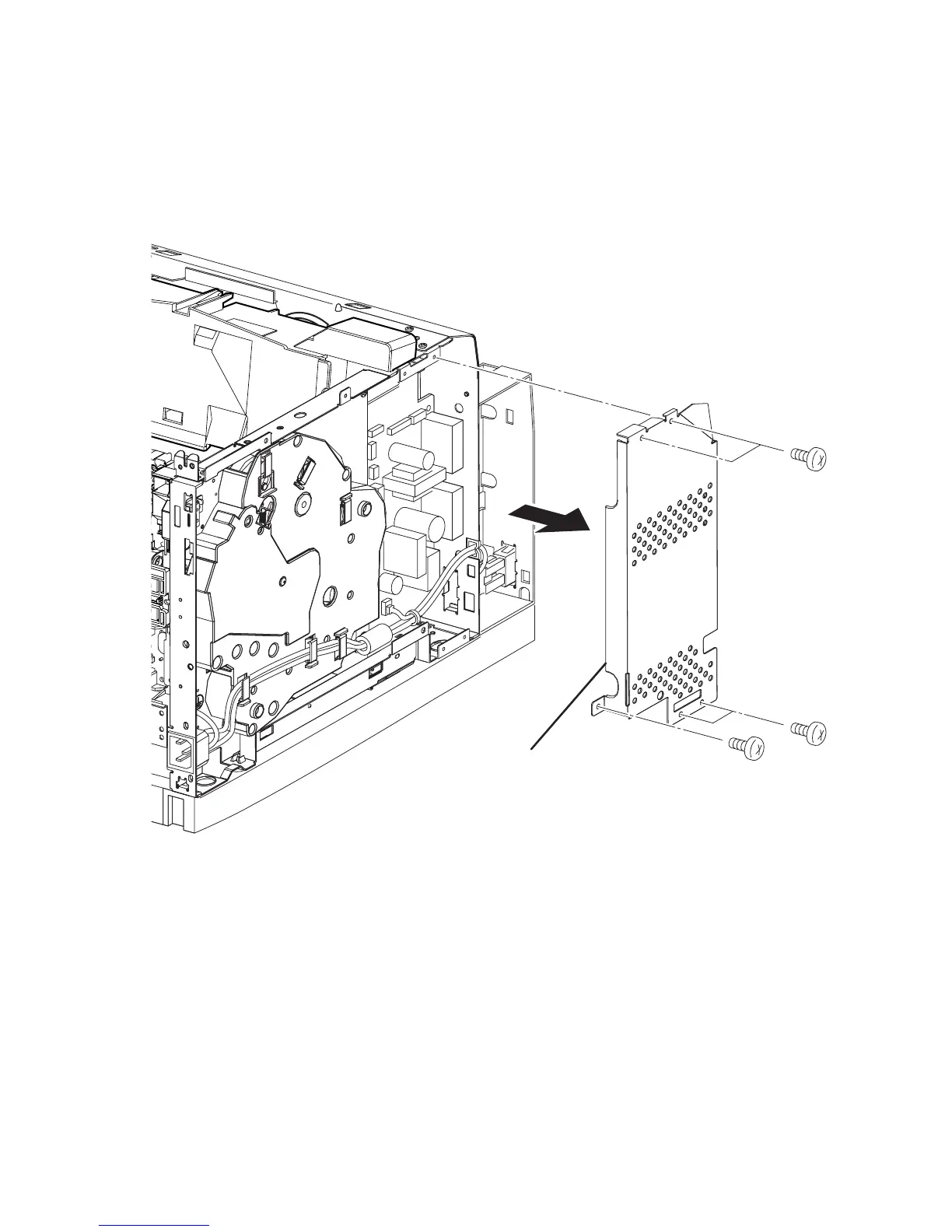

1. LVPS Shield Plate
s4500-142
1
