FRU Disassembly 8-145
Gate Solenoid Assembly
(PL23.1.27)
1. Remove the Stacker Rear Cover (page 8-133).
2. Remove the Stacker Cover (page 8-134).
3. Remove the Stacker Front Cover (page 8-137).
4. Remove the Stacker PWBA (page 8-142).
5. Remove the Offset Motor Assembly (page 8-144).
6. Remove the two screws (silver with washer, 6 mm) that attach the Gate Solenoid
Assembly to the Stacker.
7. Release the hook that secures the Gate Solenoid Assembly, and remove the Gate
Solenoid Assembly.

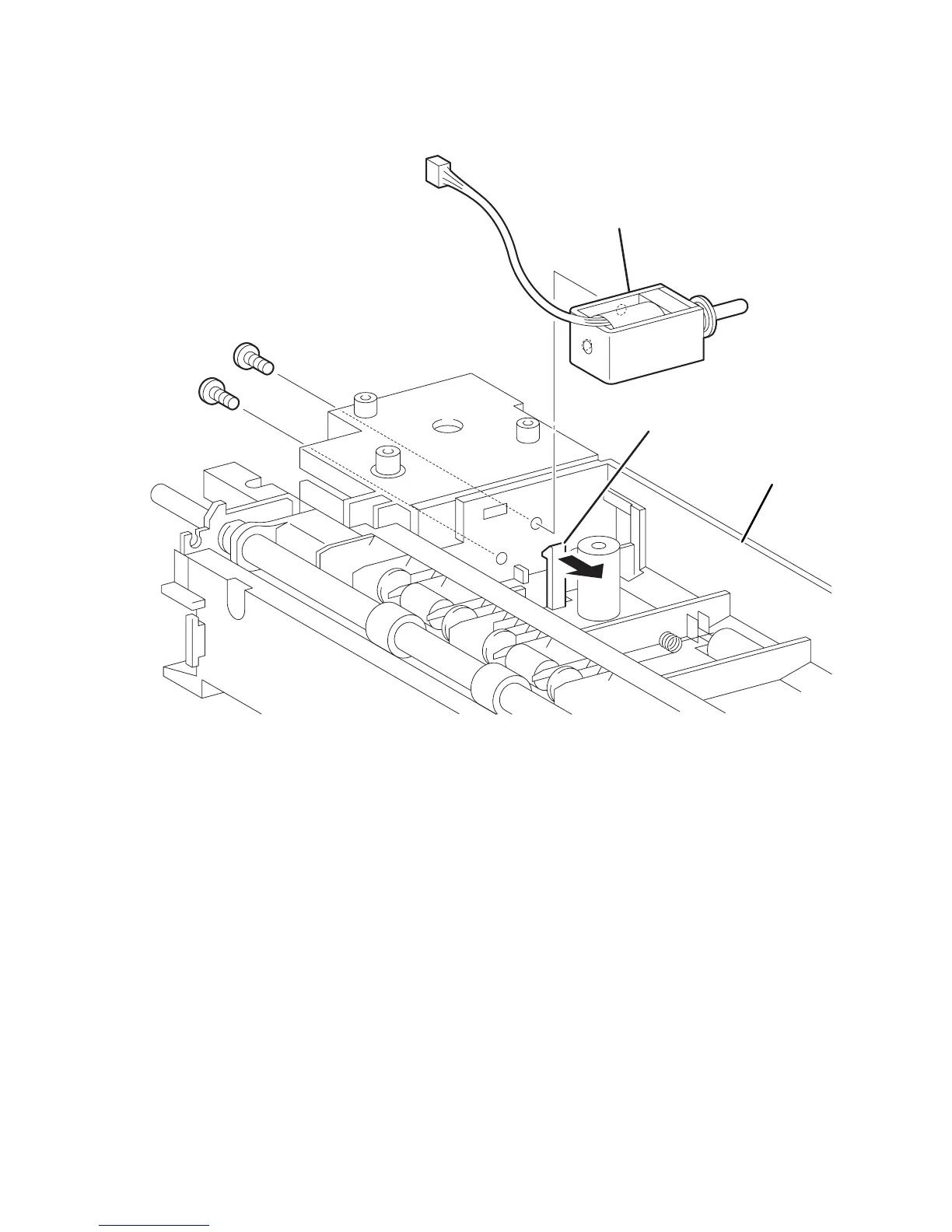

1. Gate Solenoid 3. Stacker Housing
2. Hook
s4500-210
1
2
3
To Next Page
