Xerox Phaser 4500 Service Manual

FRU Disassembly 8-9
Left Cover
(PL1.1.6)
1. Remove the Rear Cover (page 8-6).

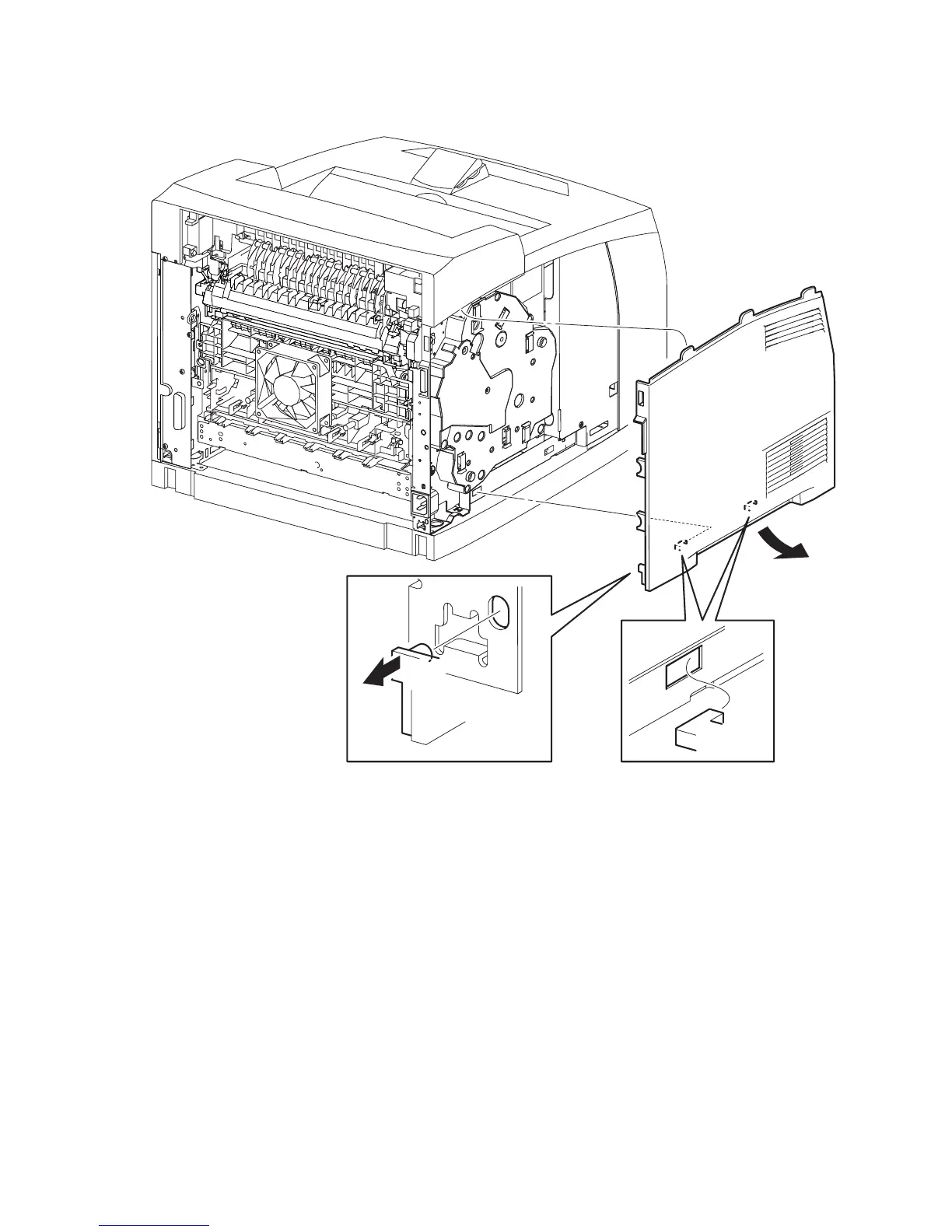

2. Shift the Left Cover towards the rear of the printer to release the five hooks (one
at the front, two at the bottom, two on the rear), then swing out the bottom edge.
3. Move the Left Cover downward to release the three tabs along the top edge, and
lift away from the printer.
s4500-059
