Print Engine: Covers
Paper Exit Cover
(PL10.1.1)
1. Open the Paper Exit Rear Door.
2. Unscrew the thumbscrews at the right and left rear sides of the Paper Exit Cover.
3. Lift the rear of the Paper Exit Cover, then pull back to release the tabs at the front
of the cover.

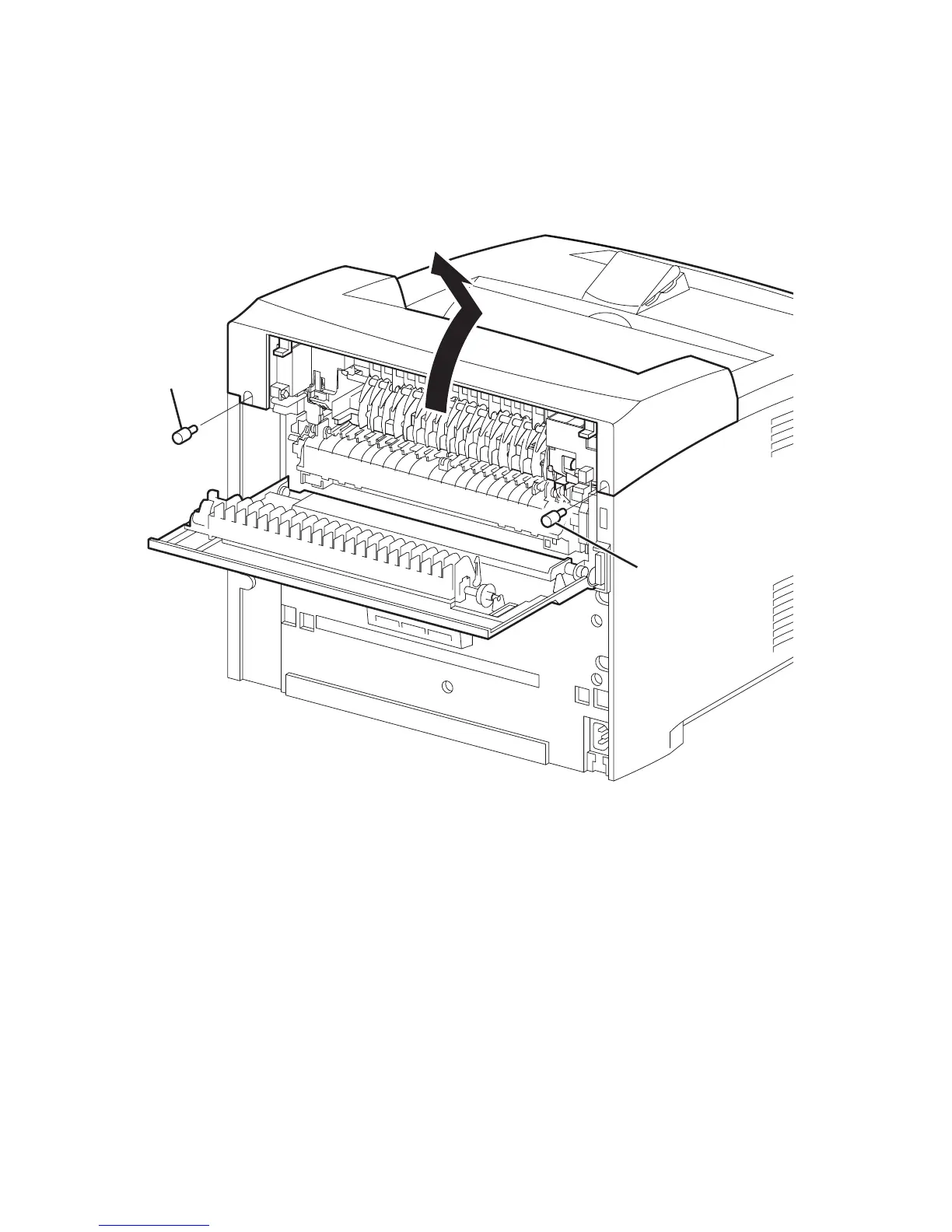

1. Thumbscrews
