FRU Disassembly 8-115

Options: Duplex Unit

Duplex Unit Removal

(PL 21.1)

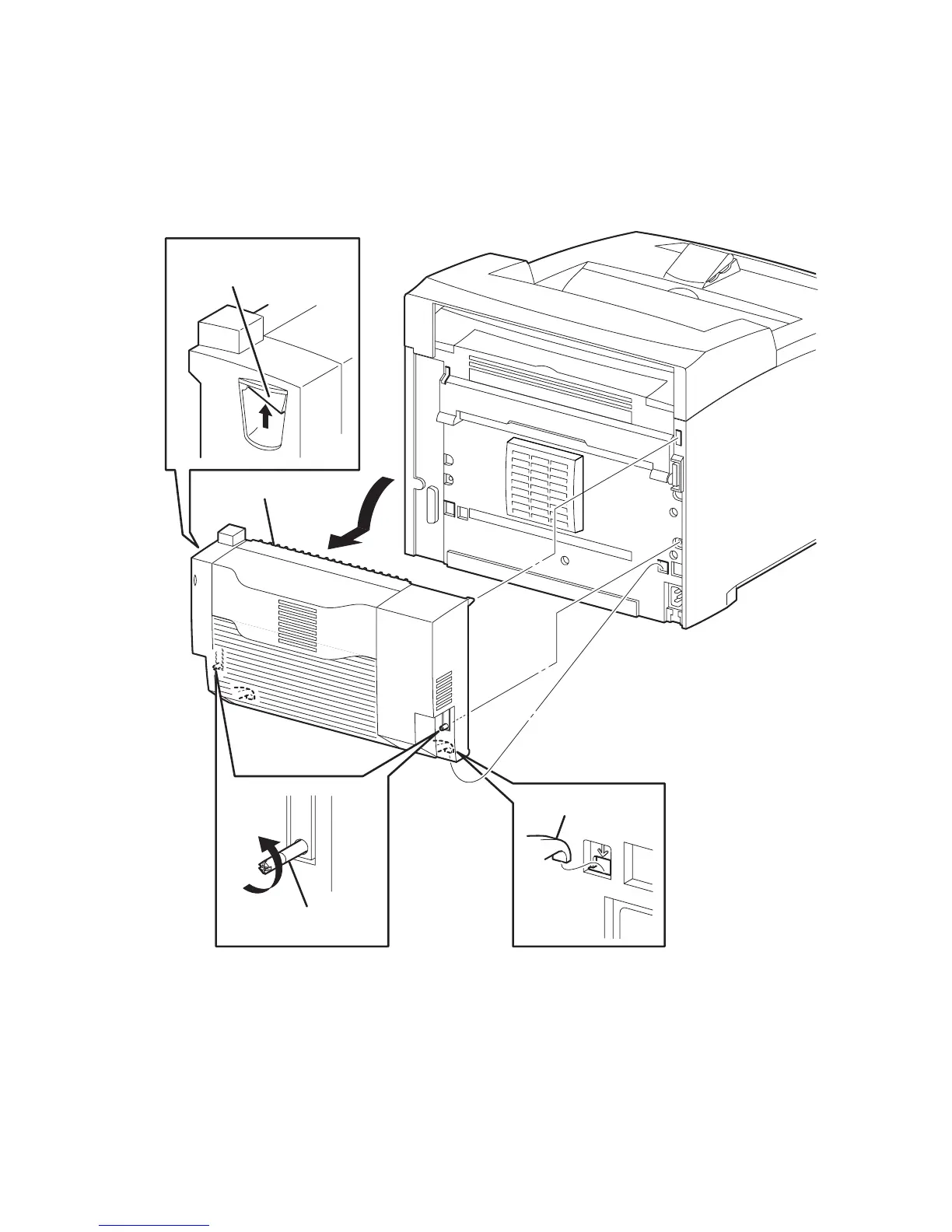

1. Thumbscrew 3. Bottom Hook

2. Right Latch Lever 4. Duplex Unit

s4500-184

2

4

1

3
