8-48 Phaser 4500 Service Manual
Laser Unit Shield Plate
(PL8.1.3)
1. Remove the Fuser Assembly (page 8-54).
2. Remove the Laser Unit Assembly (page 8-46).

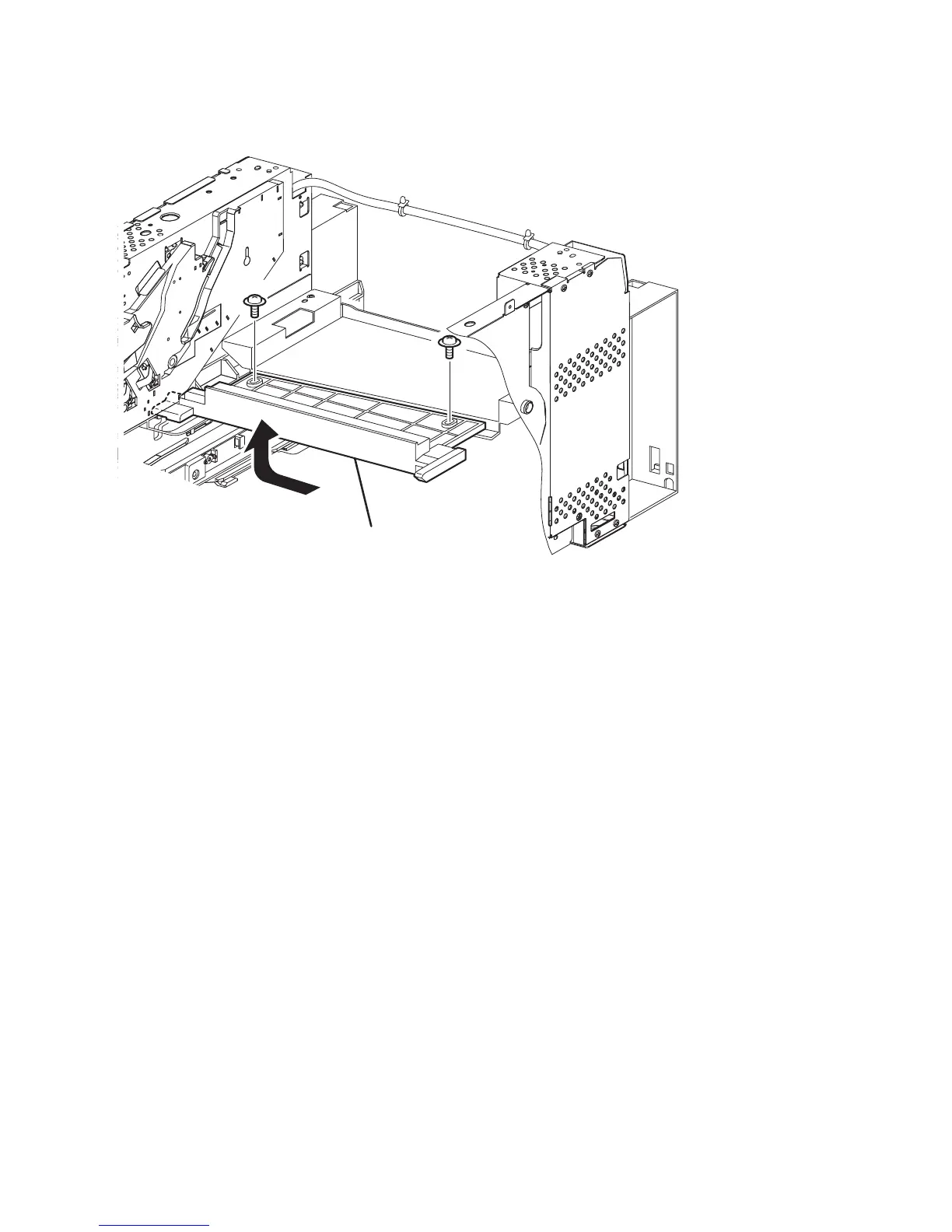

3. Remove the two screws (black with flange, 8 mm) that attach the Laser Unit
Shield Plate to the frame.
4. Lift the Laser Unit Shield Plate out of the frame as indicated by the arrow.
1. Laser Unit Shield Plate
s4500-114
1
