Xerox Phaser 4500 - Print Engine: Paper Exit; Paper Exit Assembly

FRU Disassembly 8-61
Print Engine: Paper Exit
Paper Exit Assembly
(PL10.1.2)
1. Remove the Paper Exit Cover (page 8-4) or Stacker (page 8-132) if installed.
2. Remove the Right Cover (page 8-7
3. Remove the Left Cover (page 8-9).
4. Remove the Image Processor Shield Assembly (page 8-86).
5. Unplug J29 (the Exit Sensor Harness Assembly) from P29 on the HVPS/Engine
Logic Board.

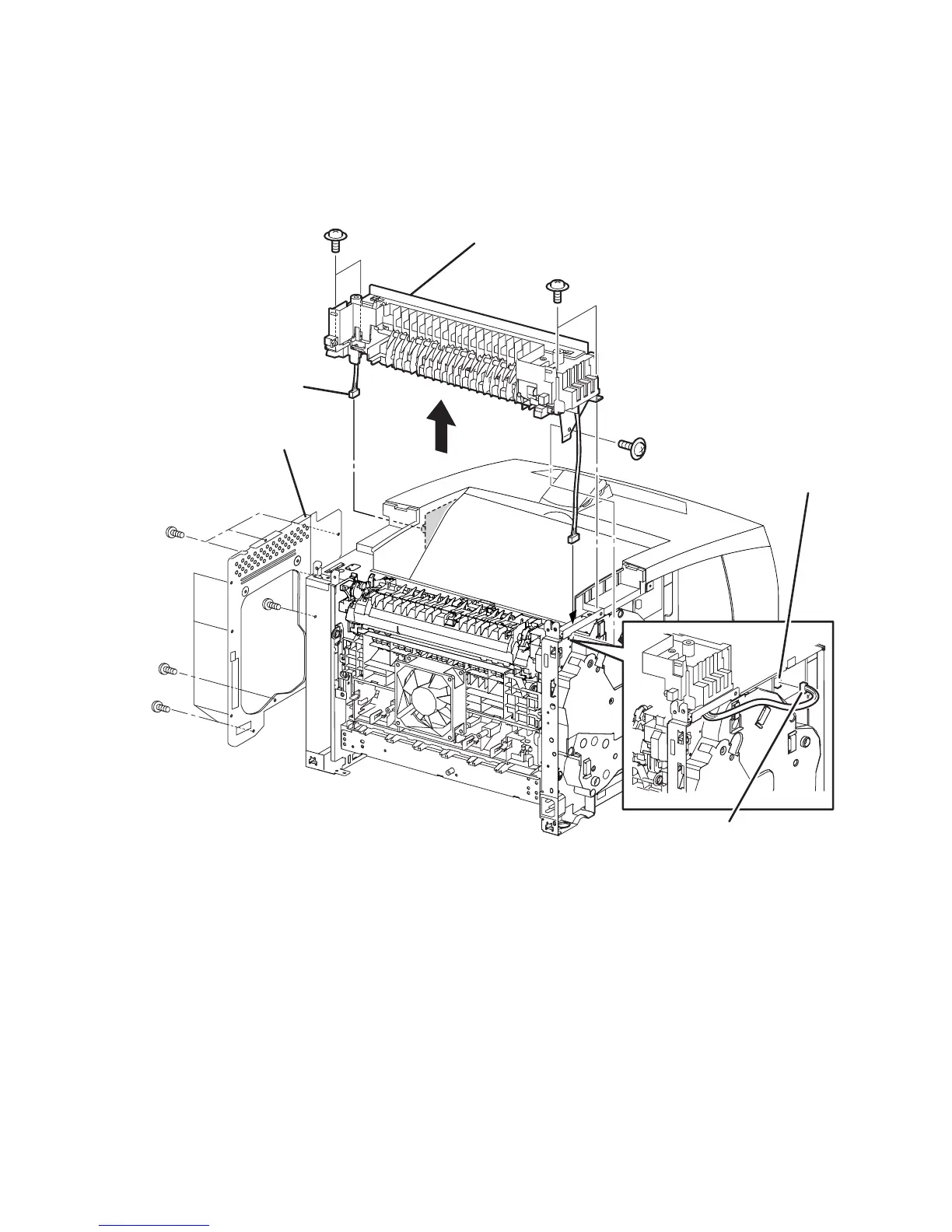

1. Image Processor Shield Assembly 3. Exit Motor PWBA
2. Paper Exit Assembly
s4500-128
2
J29
1
3
J103
