FRU Disassembly 8-129

Duplex Unit Motor

(PL21.1.29)

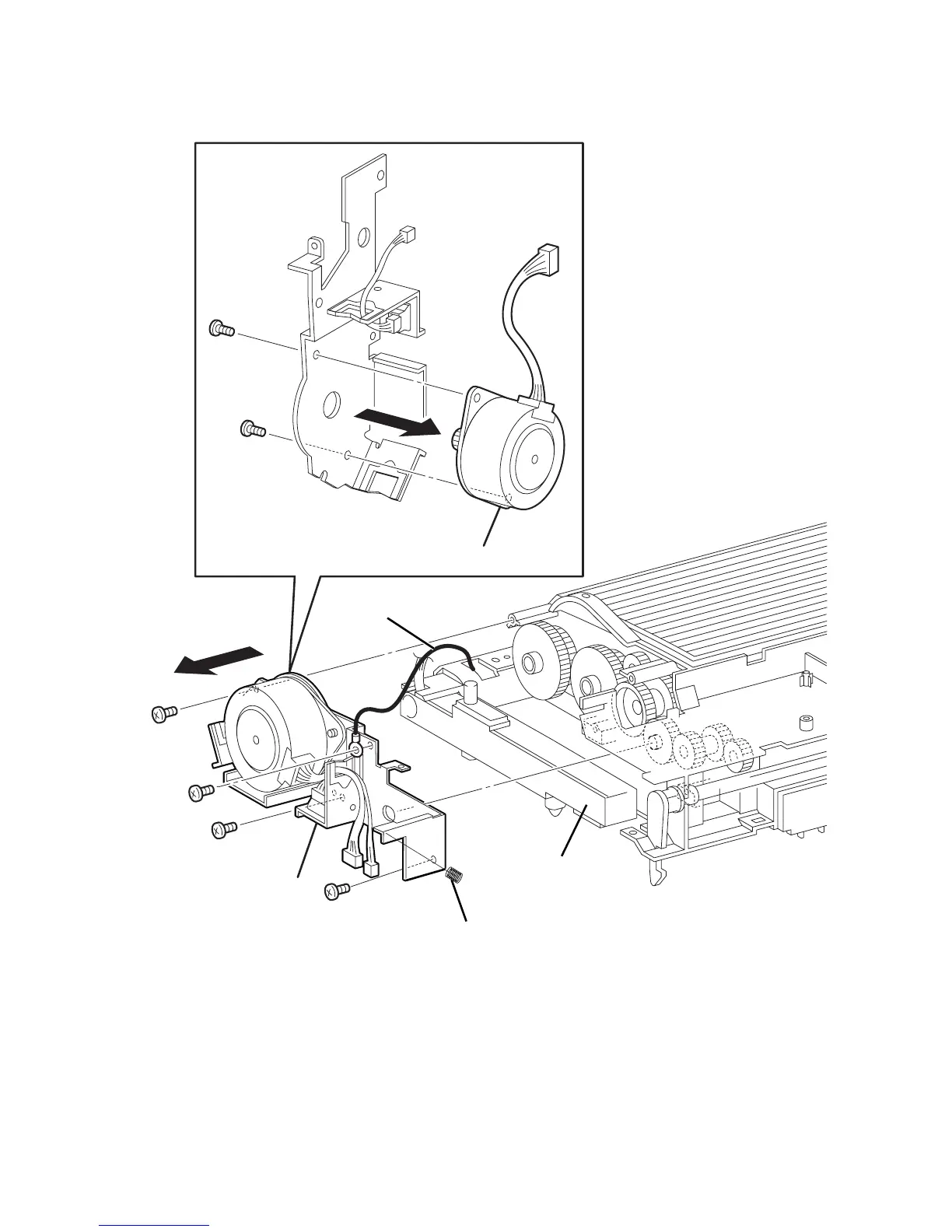

1. Duplex Unit Motor 4. Latch Spring

2. Ground wire 5. Duplex Unit Housing Cover

3. Motor Bracket

s4500-195

1

2

5

4

3
