2-44 Phaser 4500 Service Manual

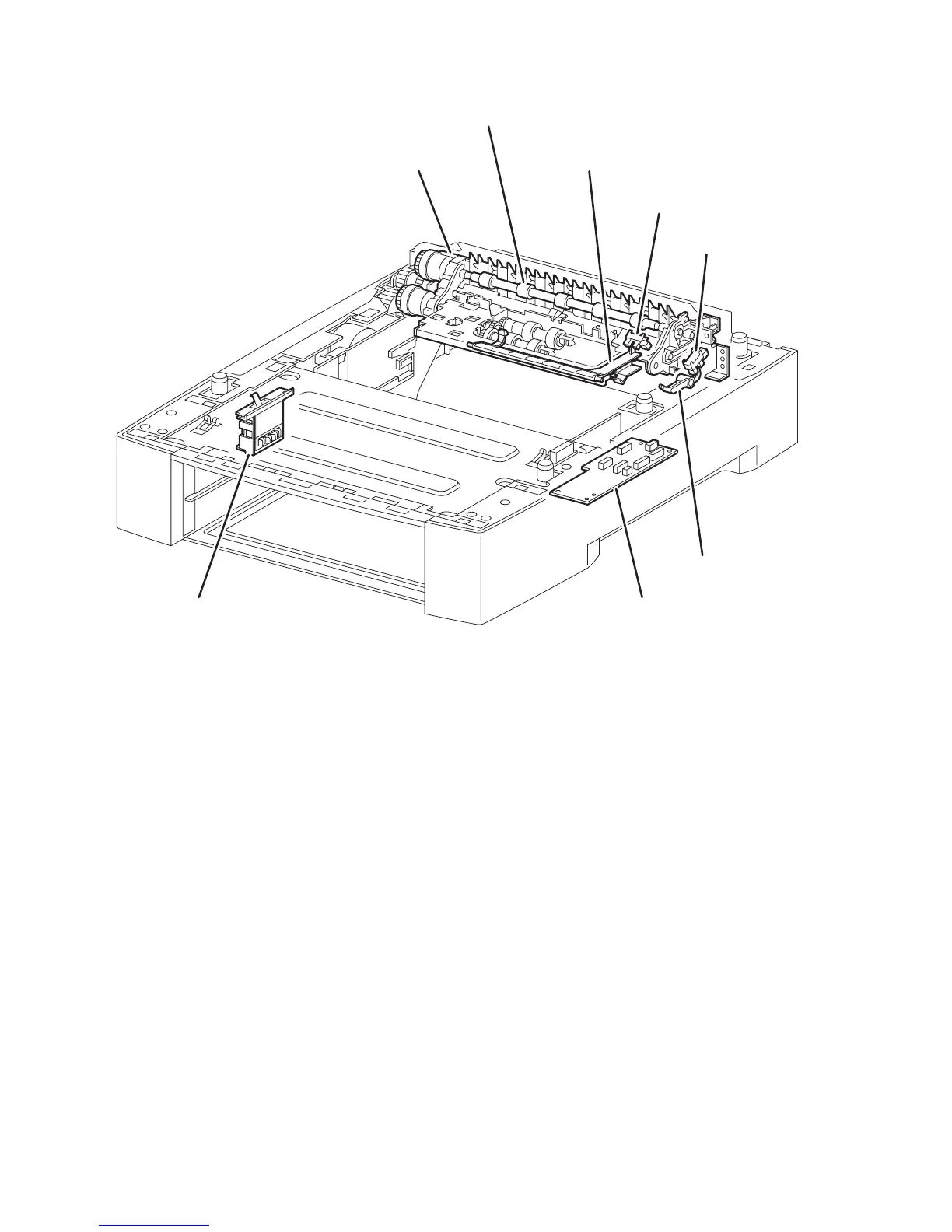

1. Optional 550-Sheet Feeder 5. Low Paper Sensor

2. Turn Roller 6. Low Paper Actuator

3. No Paper Actuator 7. 550-Sheet Feeder PWBA

4. No Paper Sensor 8. Option Paper Size Switch Assembly

s4500-036

8

1

2

3

4

5

6

7
