HVPS Shield Plate
(PL12.1.18)
1. Remove the Right Cover (page 8-7).
2. Remove the Image Processor Shield Assembly (page 8-86).
3. Remove the 10 screws (silver, 6 mm) that attach the HVPS Shield Plate to the
frame.
4. Remove the HVPS Shield Plate.

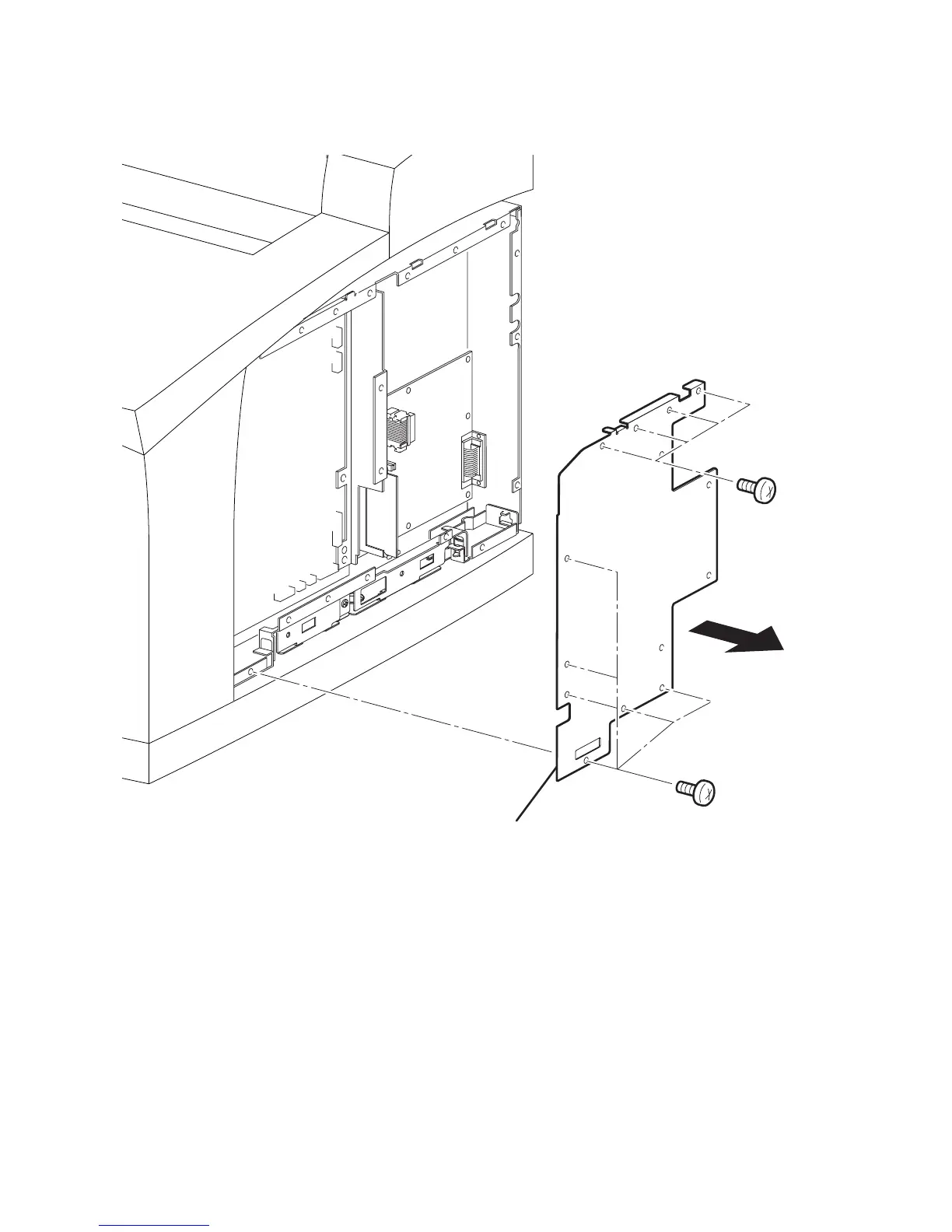

1. HVPS Shield Plate
s4500-150
1
