FRU Disassembly 8-17

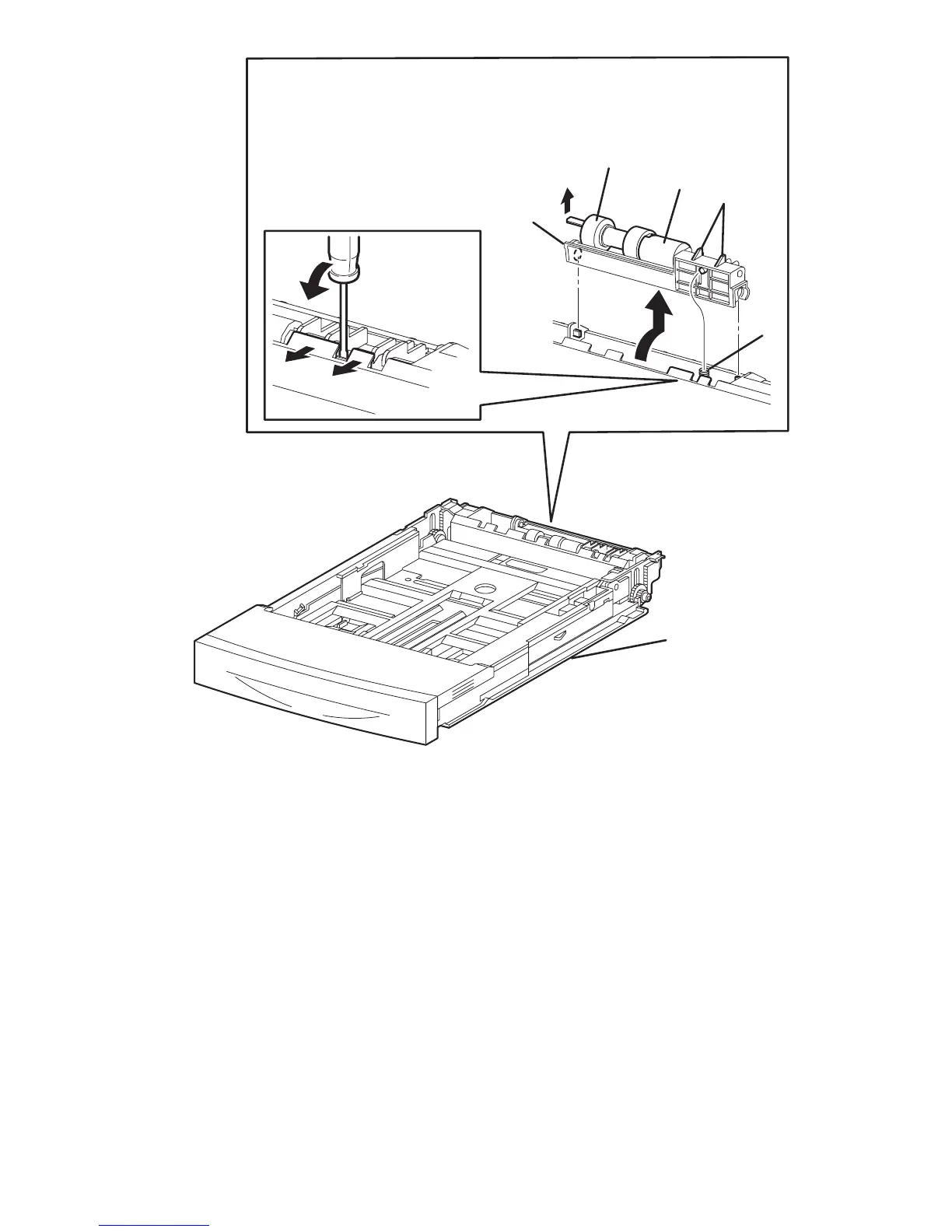

1. Retard Roller 4. Retard Holder

2. Friction Clutch 5. Retard Spring

3. Hooks 6. 150- or 550-Sheet Paper Cassette

s4500-063

1

4

2

3

5

6
