Theory of Operation 2-7

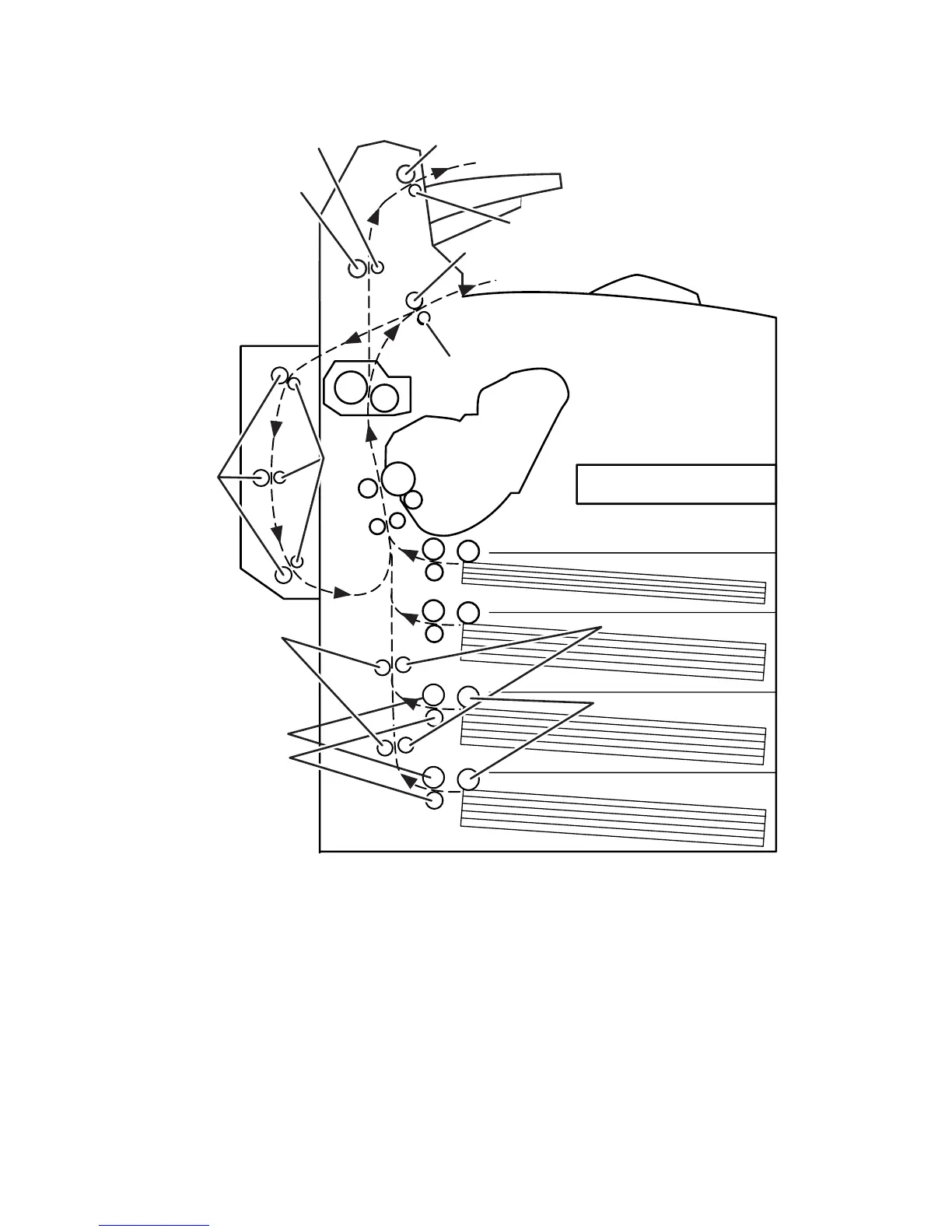

This cross section shows the additional components associated with paper transport
when the 550-Sheet Feeders, the Duplex Unit, and the Stacker are installed.
1. Stacker Pinch Roller 8. Pinch Rollers
2. Lower Stacker Roller 9. Turn Pinch Rollers
3. Upper Stacker Roller 10.Turn Roller Assemblies
4. Pinch Roller 11.Feed Roller Assemblies
5. Exit Roller 12.Retard Roller Assemblies
6. Exit Pinch Roller 13.Nudger Roller Assemblies
7. Duplex Rollers
4500-019
1
2
3
4
5
6
7
8
9
10
13
11
12
To Next Page
