8-140 Phaser 4500 Service Manual
Removal
1. Remove the Stacker Rear Cover (page 8-133).
2. Remove the Stacker Cover (page 8-134).
3. Lift the Stack Full Actuator flap in the direction of the arrow (1). Release the
actuator shaft from the hook, then move the actuator in the direction of the arrow
(2) to remove from the Stacker.
Replacement
1. Lift up the Stack Full Actuator in the direction of the arrow (1), and insert it to
the hook. Move the Stack Full Actuator in the opposite direction of the arrow (2)
to install.
Note

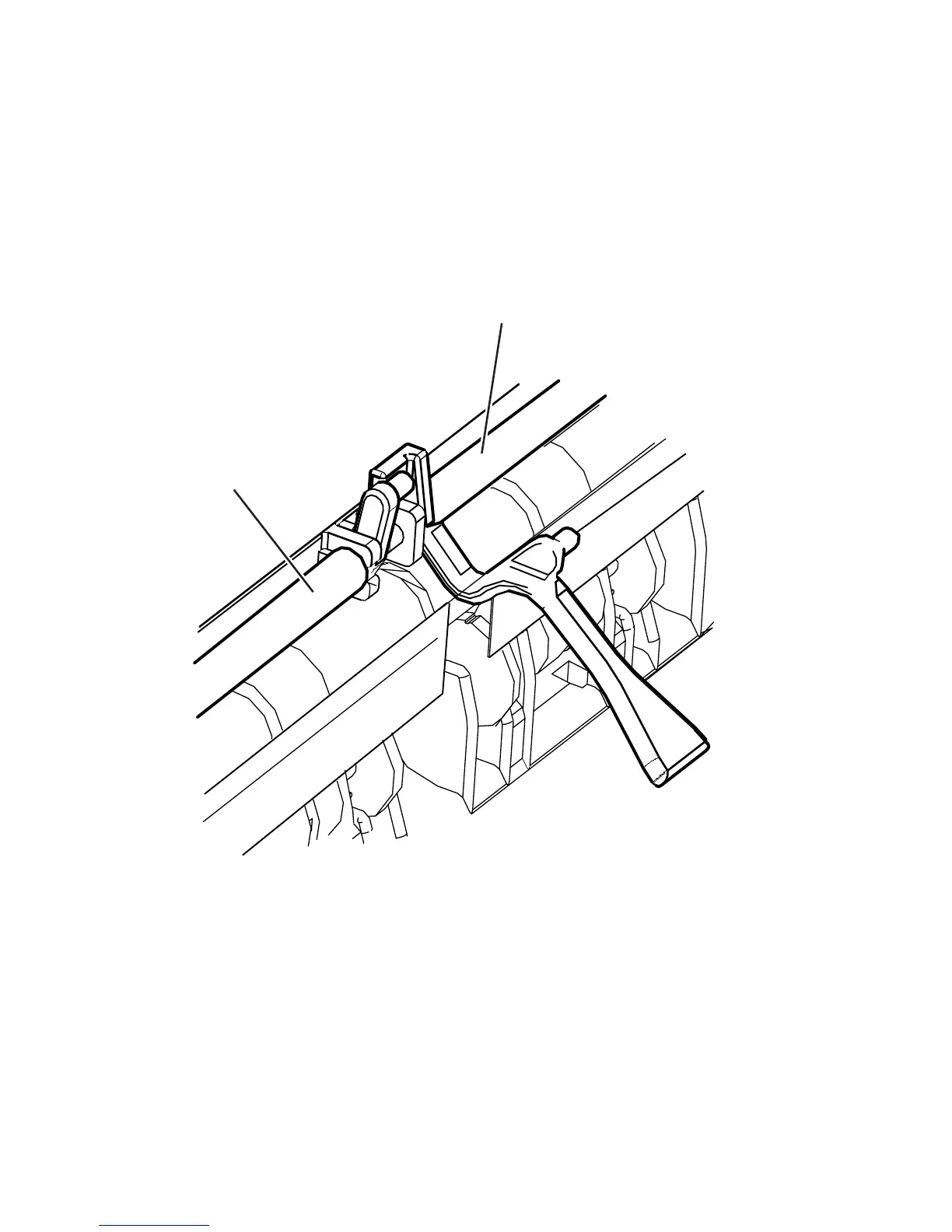

When installing the Stack Full Actuator to the Stacker, engage the actuator
with the Stack Full Shaft as shown in the figure.
1. Stack Full Shaft 2. Stack Full Actuator
s4500-207
1
2
To Next Page
