Phaser 6130 Color Laser Printer Service Manual 8-35
Service Parts Disassembly

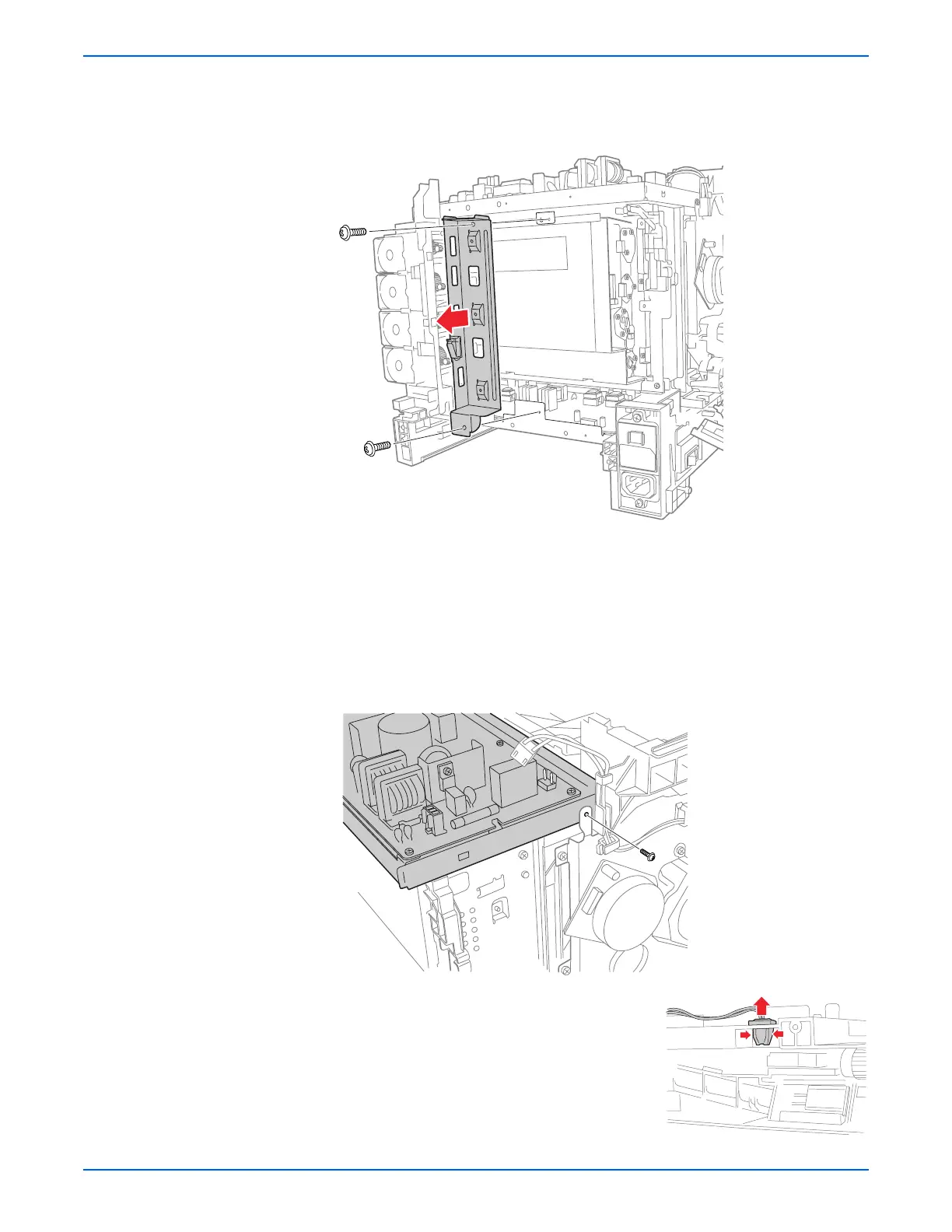

8. Remove the two screws (silver, 6mm) that attach the Right MCU Bracket
to the printer.
9. Remove the Right MCU Bracket from the printer.
10. Remove all the connectors on the LVPS Board. Release the Fuser
Harness from the Fuser Harness Guide.
11. Release the latches of the Fuser Harness Guide and slide it to the left to
release the hooks from the LVPS Frame.
12. Remove the two screws (silver, 6mm) and the six screws (silver, tap,
8mm) that attach the LVPS Frame to the printer.
13. Remove the screw (silver, M4, 6mm) that attaches the Sub-Drive to the
LVPS Frame, remove the LVPS Frame from the printer together with the
LVPS Board.
14. Release the hook of the connector of the
RL Test Harness using a pliers, and then
remove it from the Dispenser Assembly.
s6130-163
s6130-095
s6130-10
