8-36 Phaser 6130 Color Laser Printer Service Manual
Service Parts Disassembly

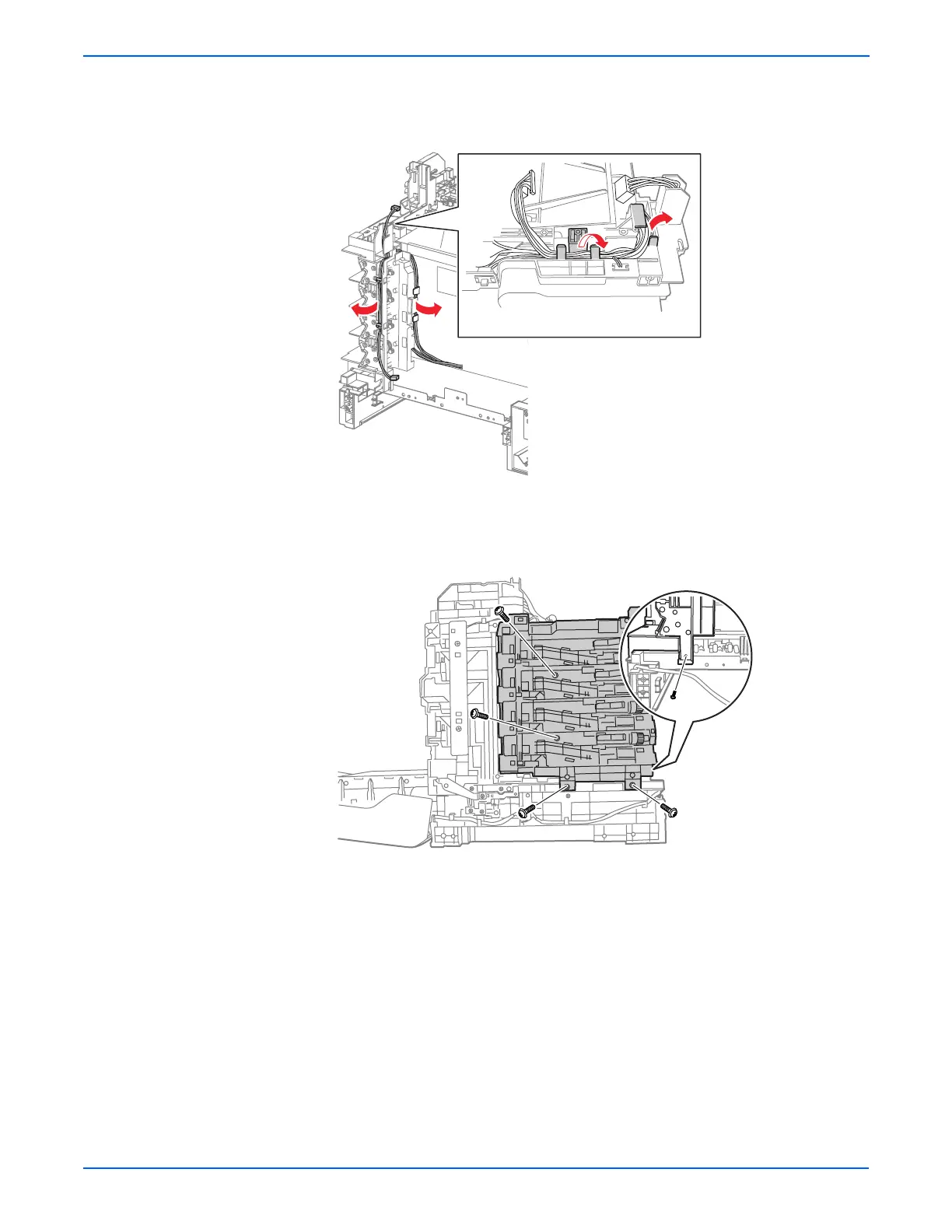

15. Remove the Fuser Harness, LVPS Harness, 24V Harness, I/P Board
Power Harness and Harness B from the hooks on the Dispenser
Assembly.
16. Remove the four screws (silver, tap, 8mm) that attach the Dispenser
Assembly to the printer.
17. Remove the screw (silver, 6mm) that attaches the rear side of the
Dispenser Assembly to the printer.
s6130-170
s6130-103
