Yamaha 200A - Removing Propeller Shaft Housing Assembly; Disassembling Propeller Shaft Housing Assembly

60H5E11
6
Ring nut wrench 4:
90890-06512
Ring nut wrench extension:
90890-06513
Bearing housing puller claw L 1:
90890-06502
Center bolt 2:
90890-06504
Stopper guide plate 3:
90890-06501
Propeller shaft, Propeller shaft housing (regular rotation model)
6-12

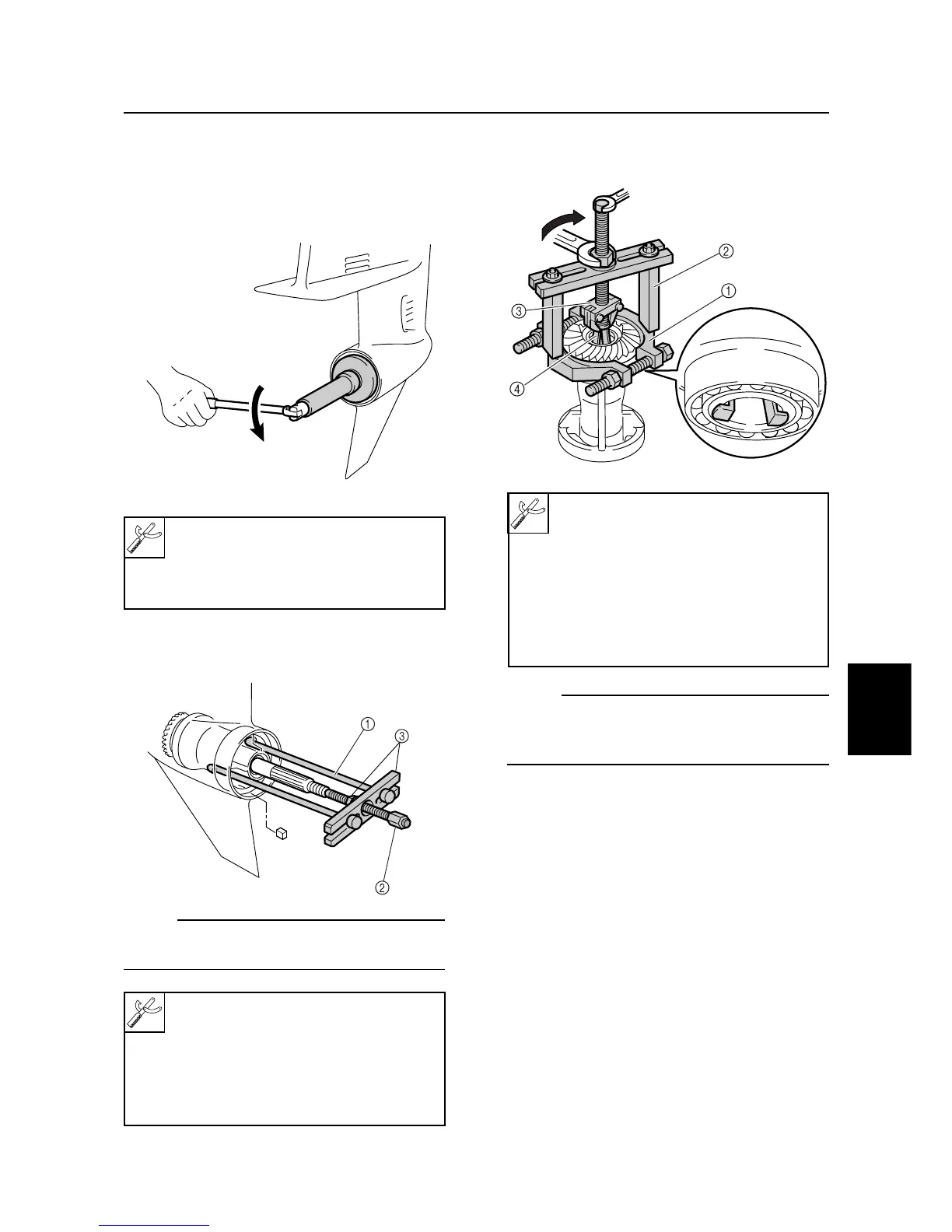

Removing the propeller shaft housing
assembly.
1. Pull up the claw washer tabs, and remove
the ring nut.
60h60120
2. Remove the propeller shaft housing assem-
bly, and the straight key.
60h60130
NOTE:
Make sure that the shims left in the lower case
have been removed.
Disassembling the propeller shaft
housing assembly
1. Remove the reverse gear.
60h60140
NOTE:
To remove the reverse gear, squeeze-in the
bearing separator between the washer plate
and the reverse gear.
Bearing separator 1:
90890-06534
Stopper guide stand 2:
90890-06538
Bearing puller assembly 3:
90890-06535
Bearing puller claw 1 4:
90890-06536
