60H5E11
5
5. Disconnect the wiring for power trim and
tilt system, the pilot jet hose, and water
pressure control valve hose. Remove the
mounting bracket bolts 5 for shift rod as-
sembly.
60H50085
6. Remove the upper case cover 6 and the
apron 7.
60H50090
7. Lift up the power unit after removing the
bolts and nuts. Remove the dowels.
60H50100

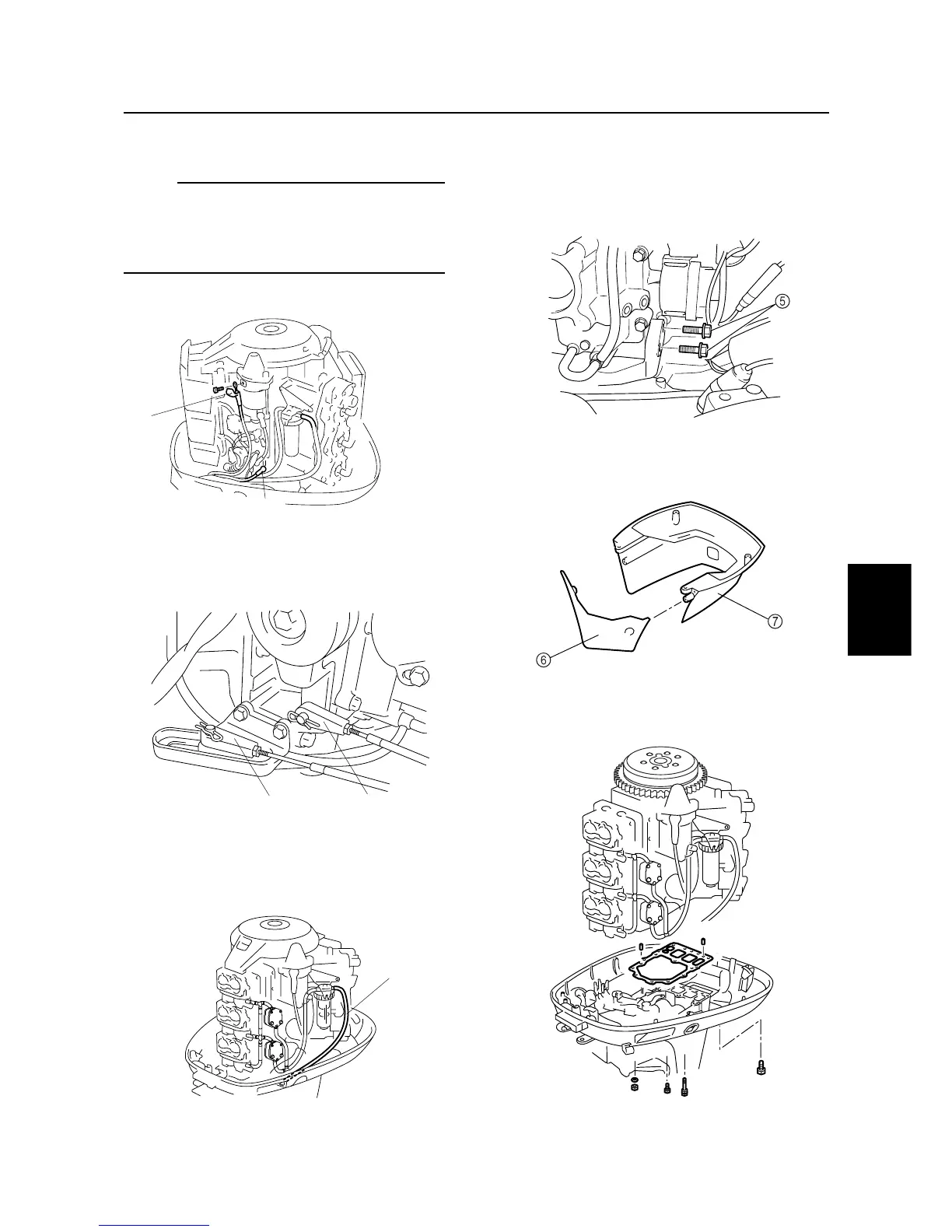

Removing the power unit
NOTE:
If the power unit is to be disassembled, it is
recommended to loosen the nut on flywheel
magnet assembly before removing the power
unit to improve working efficiency.
1. Disconnect the battery cable 1.
60H50070
2. Disengage the remote control connector.
Remove the shift cable 2 and the throttle
cable 3.
60H50075
3. Remove the flywheel magnet cover and the
intake silencer.
4. Disconnect the fuel hose 4.
60H50080
3
2
5-14
1
1
4
Power unit / Removing the power unit
