Power unit
POWR
T
R
.
.
Crankcase bolt:
1st:
M10 bolt:
20 N • m (2.0 kgf • m, 15 ft • lb)
M8 bolt:
10 N • m (1.0 kgf • m, 7 ft • lb)
2nd:
M10 bolt:
39 N • m (3.9 kgf • m, 29 ft • lb)
M8 bolt:
18 N • m (1.8 kgf • m, 13 ft • lb)
Cylinder head bolt:
1st : 15 N • m (1.5 kgf • m, 11 ft • lb)
2nd : 29 N • m (2.9 kgf • m, 21 ft • lb)
T
R
.
.

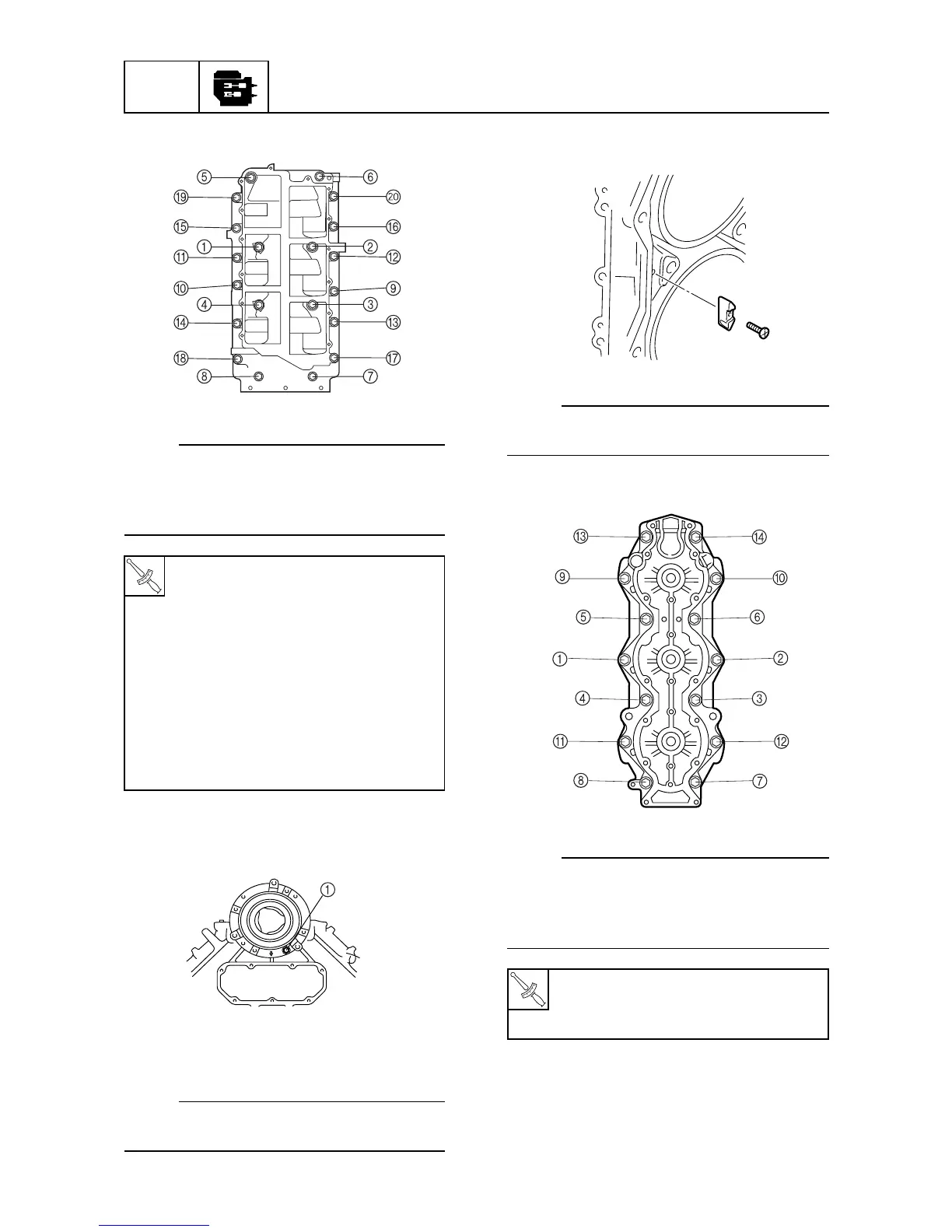

Installing the cylinder head
1. Check the anode on the cylinder block.
60H50735
NOTE:
Replace the anode if it has been eroded into
half or smaller.
2. Install the cylinder head.
60H50740
NOTE:
• Tighten the cylinder head bolts in the se-
quence shown.
• Apply some oil on the bolts' seating face and
the threaded area.
5-37
6. Tighten the crankcase bolts.
60H50720
NOTE:
Tighten the bolts to the specified torques in
two stages and in the sequence shown.
Apply some oil on the bolt's seating face and
the threaded area.
7. Install the rest of the bolts on the bearing
housing and the oil seal housing, and
tighten them.
60H50730
NOTE:
Tighten the bearing housing starting with the
bolt 1.
