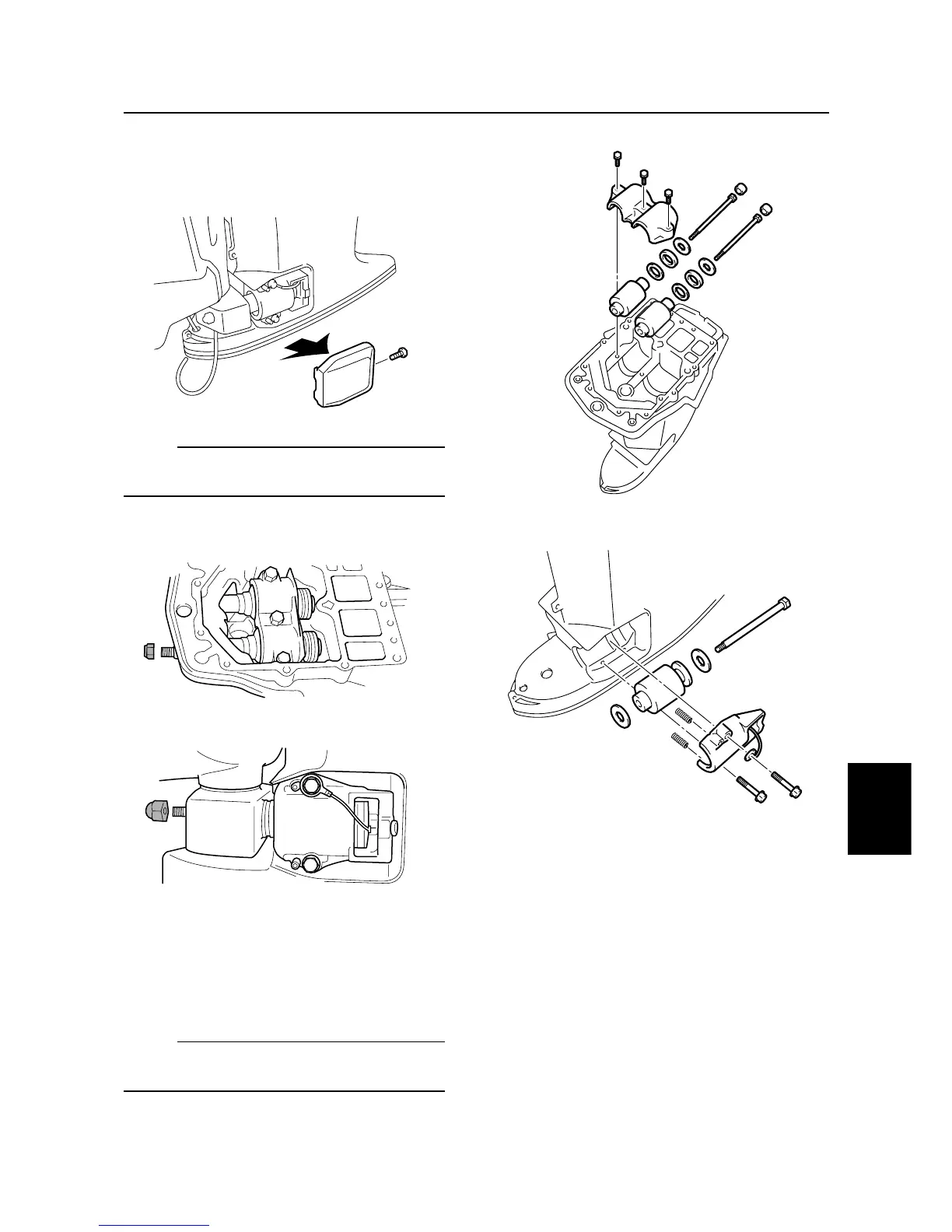

Removing the upper case
1. Disconnect the ground lead.
2. Remove the lower mount cover.
60h70060
NOTE:
Cover may pop up by the spring force. Hold it
down by hand when loosening the screw.
3. Remove the lower case by loosening the
upper mount and lower mount nuts.
60h70065
Disassembling the upper case
1. Remove the pressure control valve hose,
exhaust rubber seal, and upper exhaust
guide rubber seal.
NOTE:
Upper exhaust guide rubber seal is attached
with adhesive.
2. Remove the upper mount bracket.
60h70070
3. Remove the lower mount bracket.
60h70080
Upper case
7-10
