60H5E11
3
NOTE:
• Be sure not to spill any fuel when removing
the fuel filter cup.
• Apply a thin coat of gasoline to the O-ring 5
before assembly.
Top cowling / Hour meter / Fuel system / Power unit
3-4
Specified spark plug:
B8HS-10 (NGK)
BR8HS-10 (NGK)
Spark plug gap A:
1.0 - 1.1 mm (0.039 - 0.043 in)

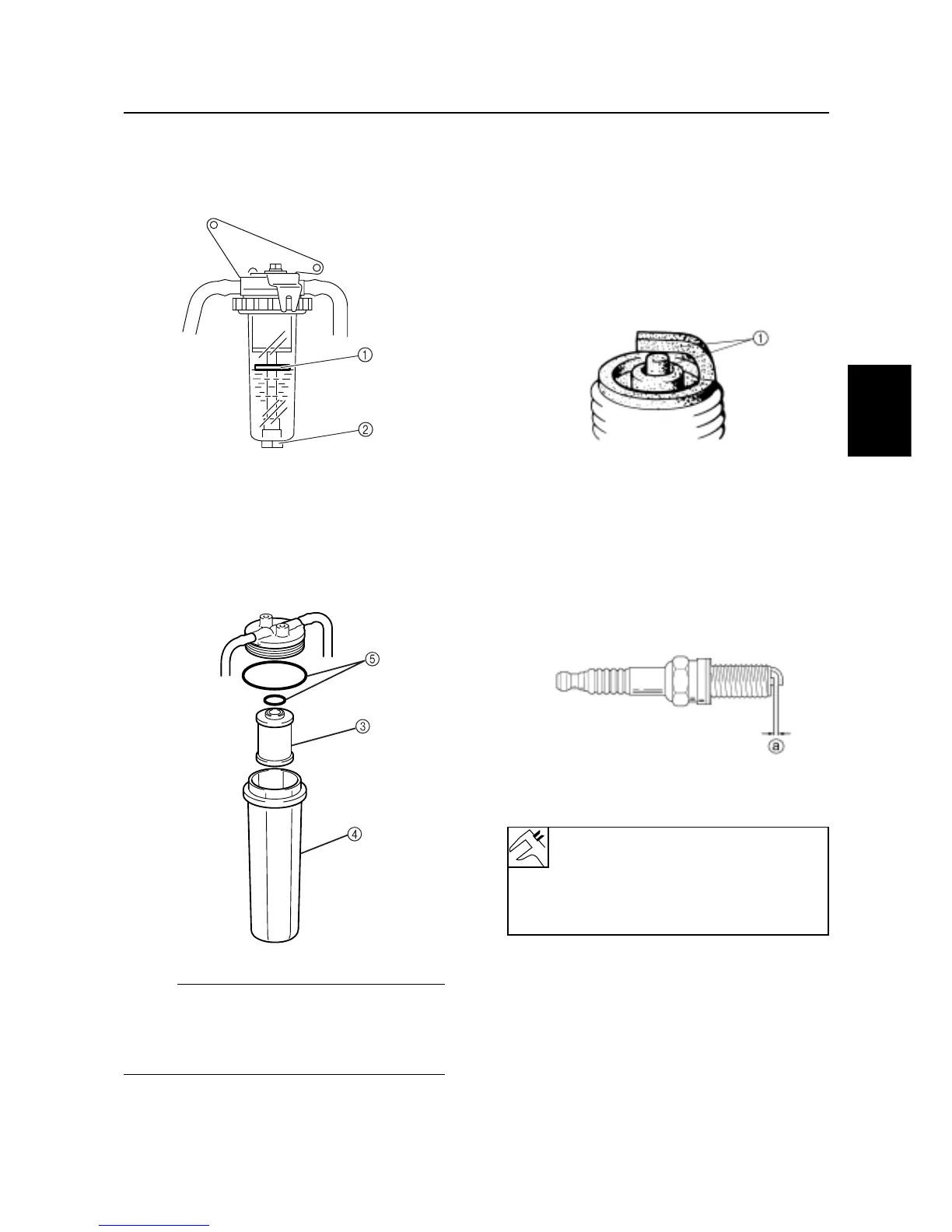

Checking the fuel filter
1. Check that the float 1 is in the appropriate
position. If water is accumulated, drain it
by loosening the drain screw 2.
60H30040
2. Check the filter element 3 for dirt and ac-
cumulated residue, and check the filter cup
4 for foreign substances and cracks. Clean
with straight gasoline, and replace the fuel
filter element if necessary.
60H30050
Power unit
Checking the spark plugs
1. Disconnect the spark plug wire before re-
moving the spark plugs.
2. Clean the electrodes 1 with a spark plug
cleaner or wire brush. Replace the spark
plug if necessary.
60H30060
3. Check the electrodes for erosion and ex-
cessive carbon deposits. Replace the
spark plug if necessary.
4. Check the spark plug gap A. Adjust if out
of specification.
60H30065
