Lower unit
LOWR
Propeller nut:
54 N • m(5.4 kgf • m, 40 lb • ft)
T
R
.
.
6-25

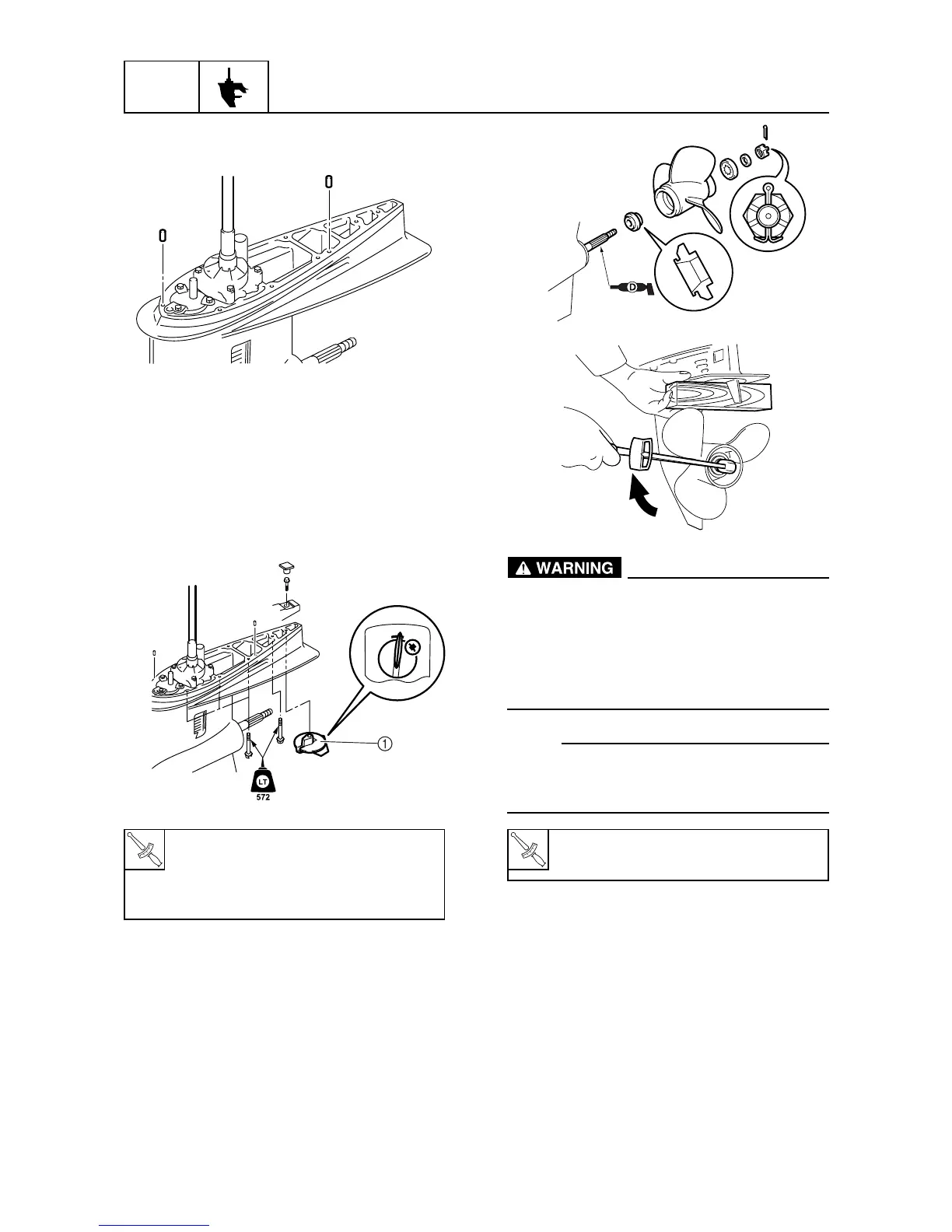

Installing the lower unit
1. Install the dowels to the lower case.
60h60560
2. Make sure that the shift rod is in neutral
position. Install the lower unit to the upper
case, and tighten the lower case bolts to
the specified torque.
3. Install the trim tab 1 to its original posi-
tion, and tighten the trim tab bolt to the
specified torque.
60h60570
4. Install the propeller and the propeller nut.
Place a block of wood between the anti-
cavitation plate and the propeller to keep
the propeller from turning. Then, tighten
the nut to the specified torque.
60h60580
60h60590
• Place a block of wood between the anti-
cavitation plate and the propeller. Do not
touch the propeller with your hands.
• Disconnect the battery cable, and remove
the lock plate for the engine stop switch,
to prevent the engine from starting.
NOTE:
If the grooves in the propeller nut do not align
with the cotter pin hole, tighten the nut further
until they are aligned.
Lower case bolt:
39 N • m(3.9 kgf • m, 29 lb • ft)
Trim tab bolt:
39 N • m(3.9 kgf • m, 29 lb • ft)
T
R
.
.
