Vacuum/pressure pump gauge set :
90890-06756
Fuel hose connector holding pressure
:
50 kPa(0.5kgf/cm
2
)
4-6
Fuel filter, fuel pump, fuel hose connector

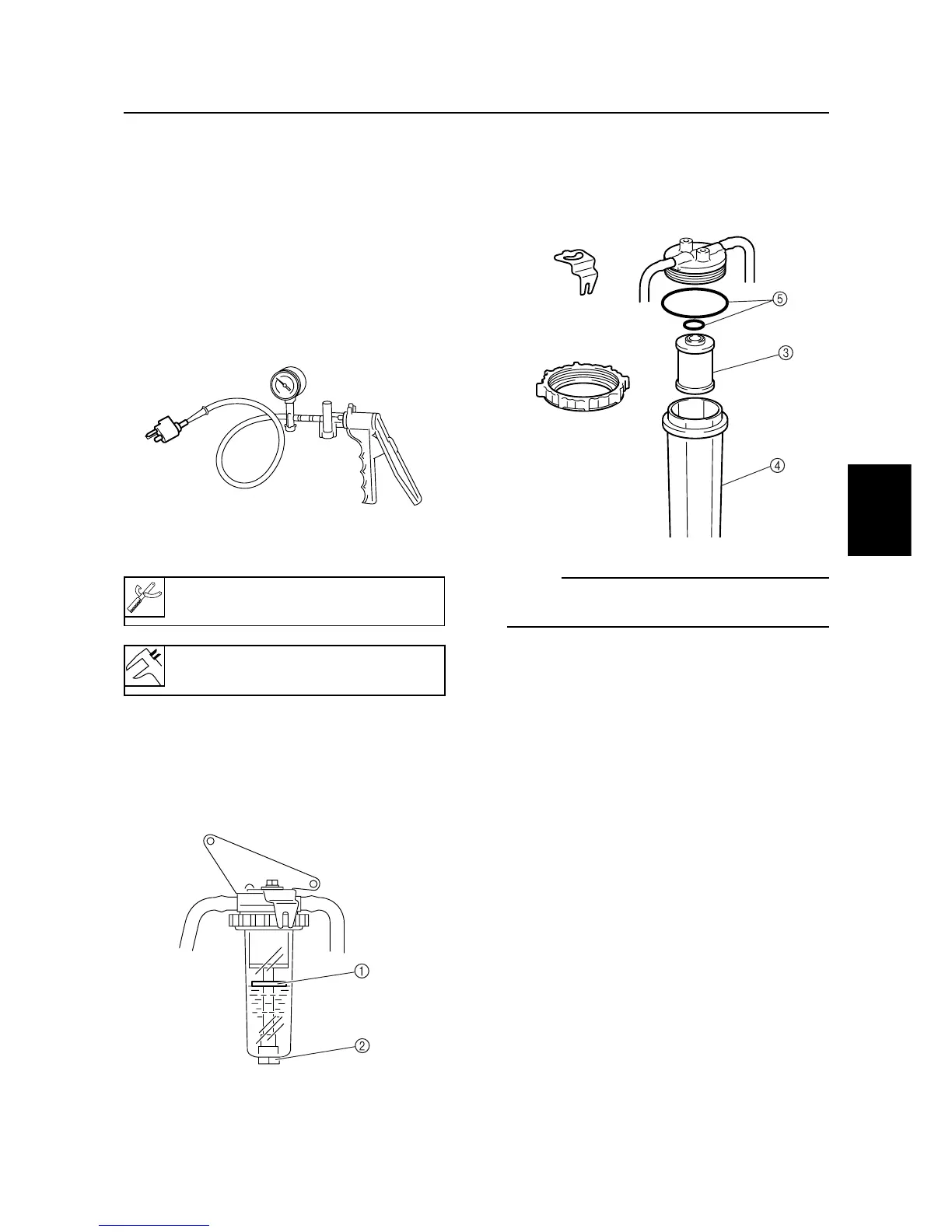

Checking the fuel joint
1. Visually check the fuel hose connector for
cracks or damage.
2. Connect the special service tool at the out-
let of fuel hose connector.
3. Apply the specified pressure to check that
the pressure is maintained for 10 seconds.
Replace the fuel hose connector if neces-
sary.
60H40040
Checking the fuel filter
1. Check that the float 1 is in the appropriate
position. If water is accumulated, drain it
by loosening the drain screw 2.
60H40050
2. Check the fuel filter element 3 for clogging,
contamination, or foreign substances, and
check the fuel filter cap 4 for crack or leak-
age. Clean with straight gasoline, or replace
them if necessary.
60H40060
NOTE:
Apply a thin coat of gasoline to the O-ring 5
before assembling the fuel filter cap.
3. Finger-tight the ring nut to the full extent,
so that the ridge on the ring nut is engaged
into the stopper recess.
