Yamaha 200A - Page 64

60H5E11

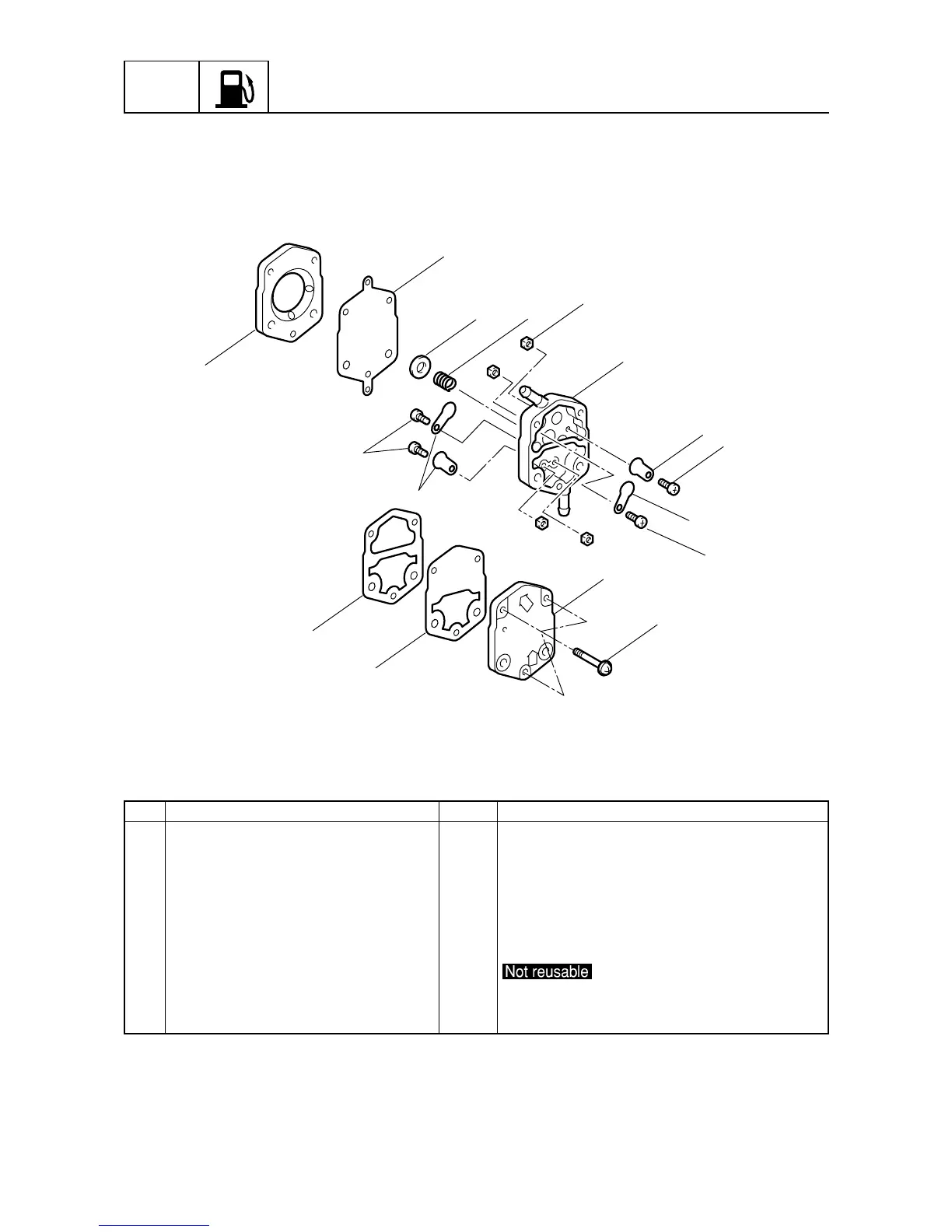

Fuel system
FUEL
60H40070
4-5
No. Part name Q’ty Remarks
1 Fuel pump base 2
2 Diaphragm 2
3 Spring seat 2
4 Spring 2
5 Nut 8
6 Fuel pump body 2
7 Fuel pump valve 8
8 Screw 8 M5 x 6 mm
9 Gasket 2
10 Diaphragm 2
11 Diaphragm body 2
12 Screw 6 M5 x 35 mm
1
2
3
4
5
6
7
8
9
10
11
12
5
7
8
7
8
