60H5E11
5
Intake manifold
5-18

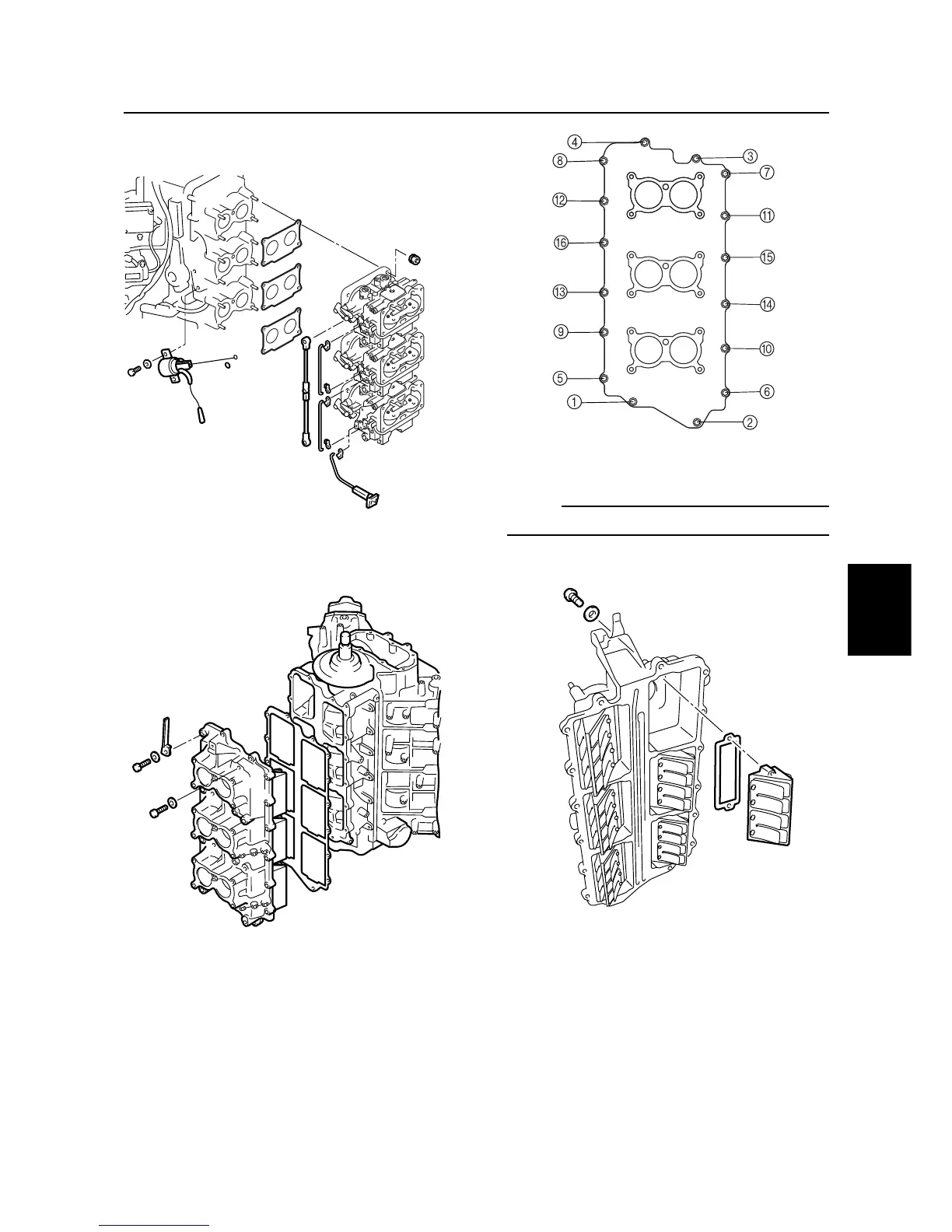

Removing the intake manifold
1. Remove the carburetor and the fuel hoses.
60H50190
2. Remove the intake manifold, and the reed
valve plate assembly.
60H50200
60H50215
NOTE:
Loosen the bolts in the sequence shown.
3. Remove the reed valve assembly.
60H50210
4. Check the reed valves for cracks or dam-
age. Replace them if necessary.
