60H5E11
Lower unit
LOWR

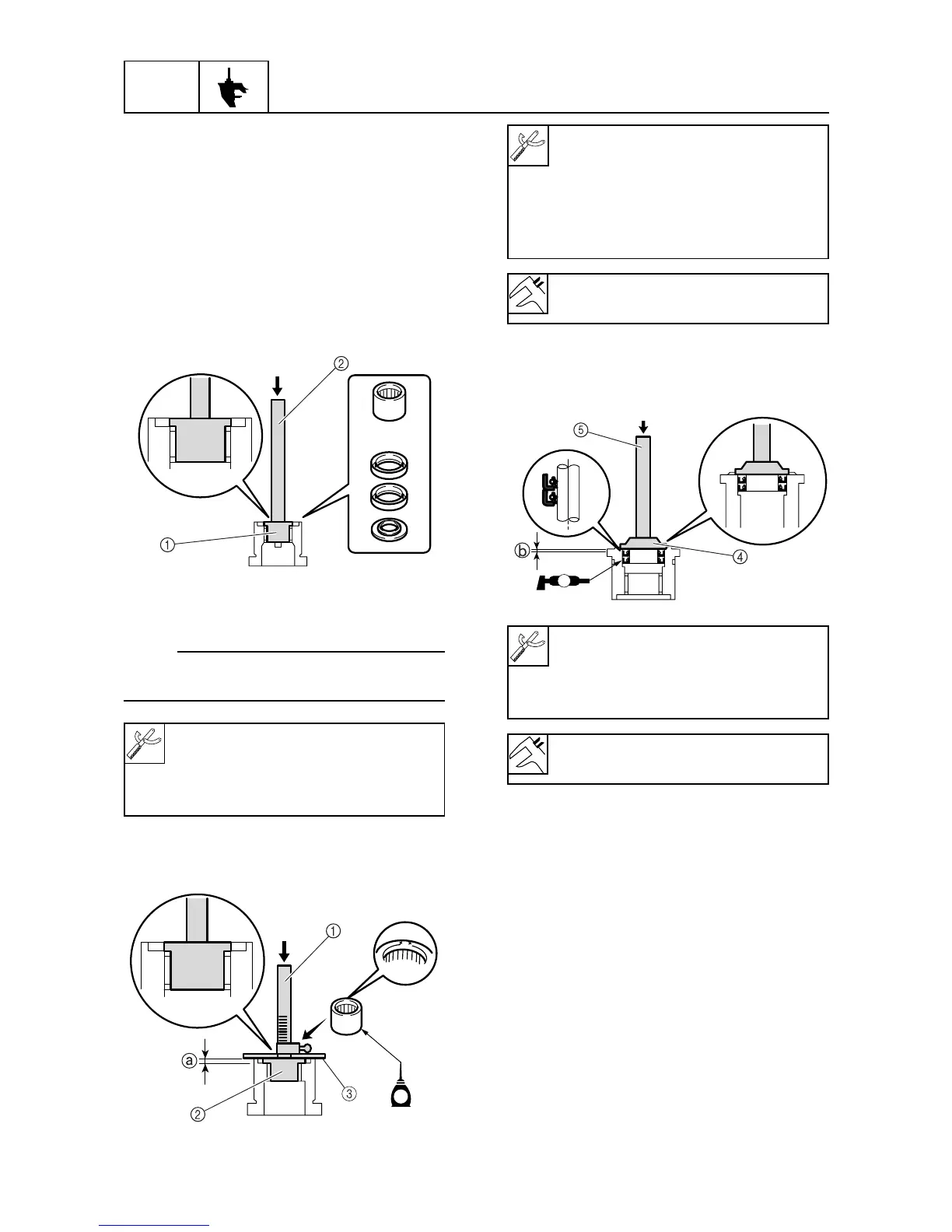

2. First, drive-in the inner oil seal halfway into
the drive shaft housing, and then drive-in
the outer oil seal to the specified depth.
60h60360
3. Install the cover.
6-19
E
AA
Needle bearing attachment 1:
90890-06610
Driver rod L3 2:
90890-06652
Driver rod SS 1:
90890-06604
Needle bearing attachment 2:
90890-06610
Bearing depth plate 3:
90890-06603
Installation depth A:
5.75 - 6.25 mm (0.2264 - 0.2460 in)
Installation depth B:
0.25 - 0.75 mm (0.0098 - 0.0295 in)
Checking the drive shaft housing
1. Check the drive shaft housing for cracks or
damage. Also check the needle bearing
for run-out and roughness, and the oil seals
for damage. Disassemble them if neces-
sary.
2. Remove the cover and the oil seals.
3. Remove the needle bearing.
60h60340
NOTE:
When the needle bearing and oil seals are re-
moved, always replace them with new ones.
Assembling the drive shaft housing
1. Install the needle bearing using a press.
60h60350
Ball bearing attachment 4:
90890-06633
Driver rod LS 5:
90890-06606
To Next Page
