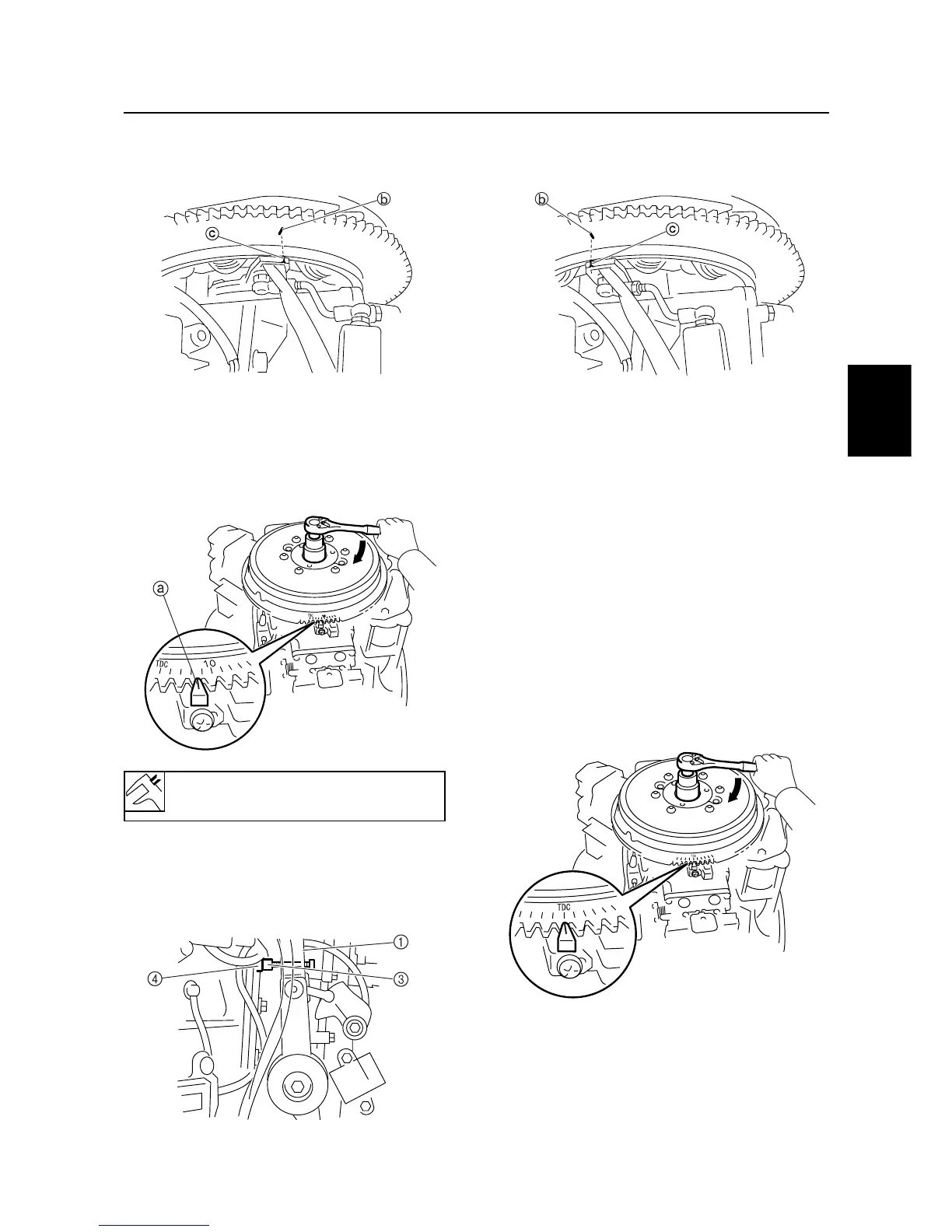

7. Move the magnet control lever 1 until the
standard ignition timing adjusting screw 3
touches the fully closed stopper 4 on the
cylinder block.
60H30190
Standard ignition timing: ATDC 7°
Control system
3-8
5. Check that the mark B on flywheel mag-
net is aligned with the mark C on base as-
sembly.
60H30170
6. Turn the flywheel clockwise until the igni-
tion mark on the flywheel magnet is aligned
with the pointer mark A on the timing plate
at the standard ignition timing.
60H30180
8. Check that the mark B on flywheel mag-
net is aligned with the mark C on base as-
sembly.
60H30200
9. Adjust the ignition timing when the align-
ment of the marks BC could not be at-
tained for either or both of the fully ad-
vanced ignition timing and standard igni-
tion timing.
Adjusting the ignition timing
1. Disconnect the throttle cable.
2. Remove the intake silencer and flywheel
cover.
3. Remove all the spark plugs.
4. Set the #1 cylinder at top dead center.
60H30195
