60H5E11
CHK
ADJ
Periodic checks and adjustments
3-3

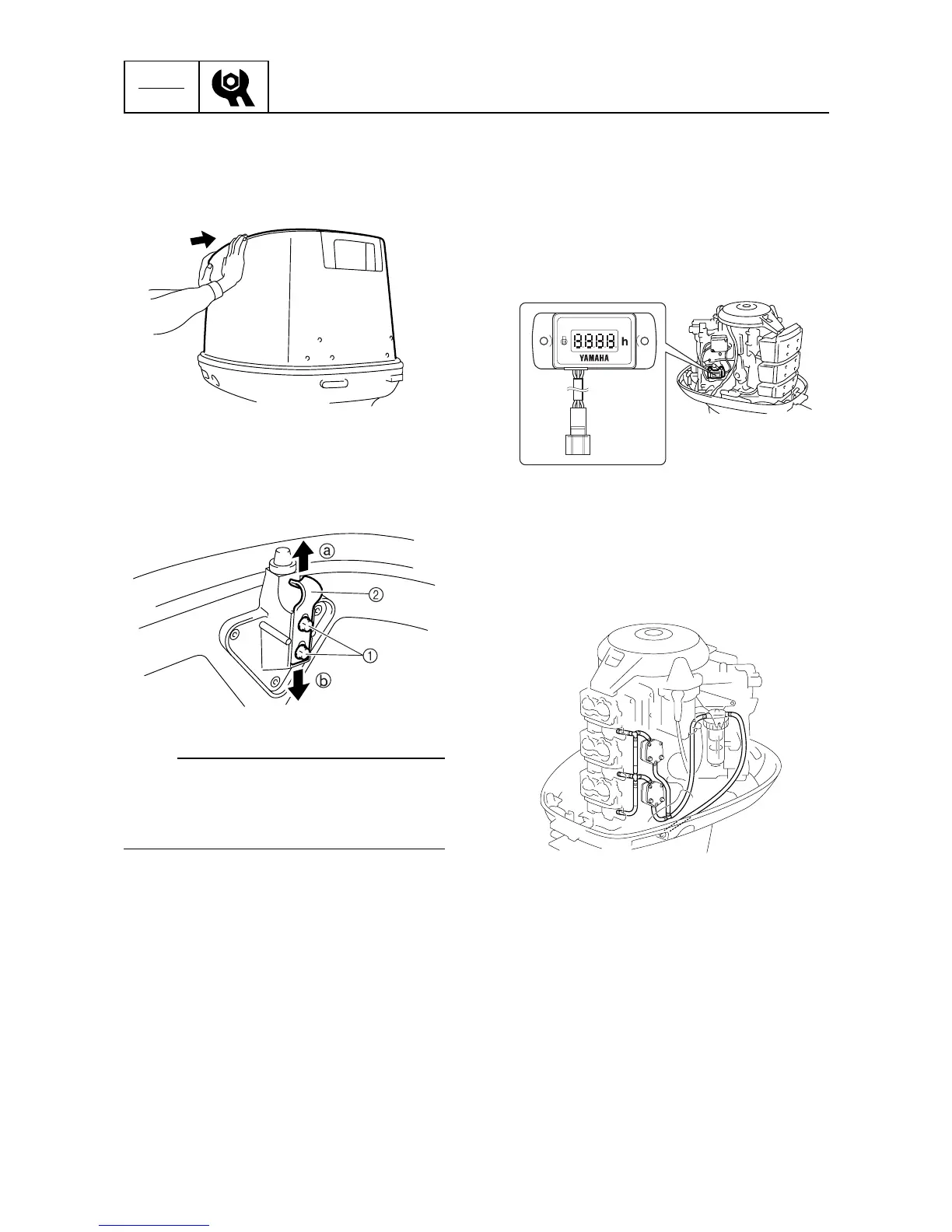

Top cowling
Checking the top cowling
1. Check the fitting by pushing the cowling
with both hands. Adjust if necessary.
60H30010
2. Loosen the bolts 1.
3. Move the hook 2 up or down to adjust its
position.
60H30020
NOTE:
• To loosen the fitting, pull up the hook 2 in
the direction of arrow A.
• To tighten the fitting, push down the hook 2
in the direction of arrow B.
4. Tighten the bolts 1.
5. Check the fitting again, and repeat steps
2-4 until the proper fitting is obtained.
6. Check the rubber seal for cracks or dam-
age. Replace if necessary.
Hour meter
Checking the hour meter
1. Turn the ignition switch to ON.
2. Check that the total hour of operation is dis-
played after the entire Light Emitting Diode
has been illuminated for two seconds.
60H30030
Fuel system
Checking the fuel joint and fuel hoses
(fuel joint - to - carburetor)
1. Check the fuel hose connections and the
fuel hose joint for leaks.
60H30035
2. Check the fuel filter, fuel pump, and carbu-
retor for leaks. Check the fuel hoses for de-
terioration. Replace them if necessary.
