Yamaha 200A - Disassembling the Propeller Shaft Housing Assembly; Checking the Propeller Shaft Housing Assembly; Assembling the Propeller Shaft and Propeller Shaft Assembly

60H5E11
6
AA
Installation depth A:
24.75 - 25.25mm (0.9744 - 0.9941 in)
Bearing inner race attachment 4:
90890-06642
E
Driver rod SS 1: 90890-06604
Needle bearing attachment 2:
90890-06610
Bearing depth plate 3: 90890-06603
6-44

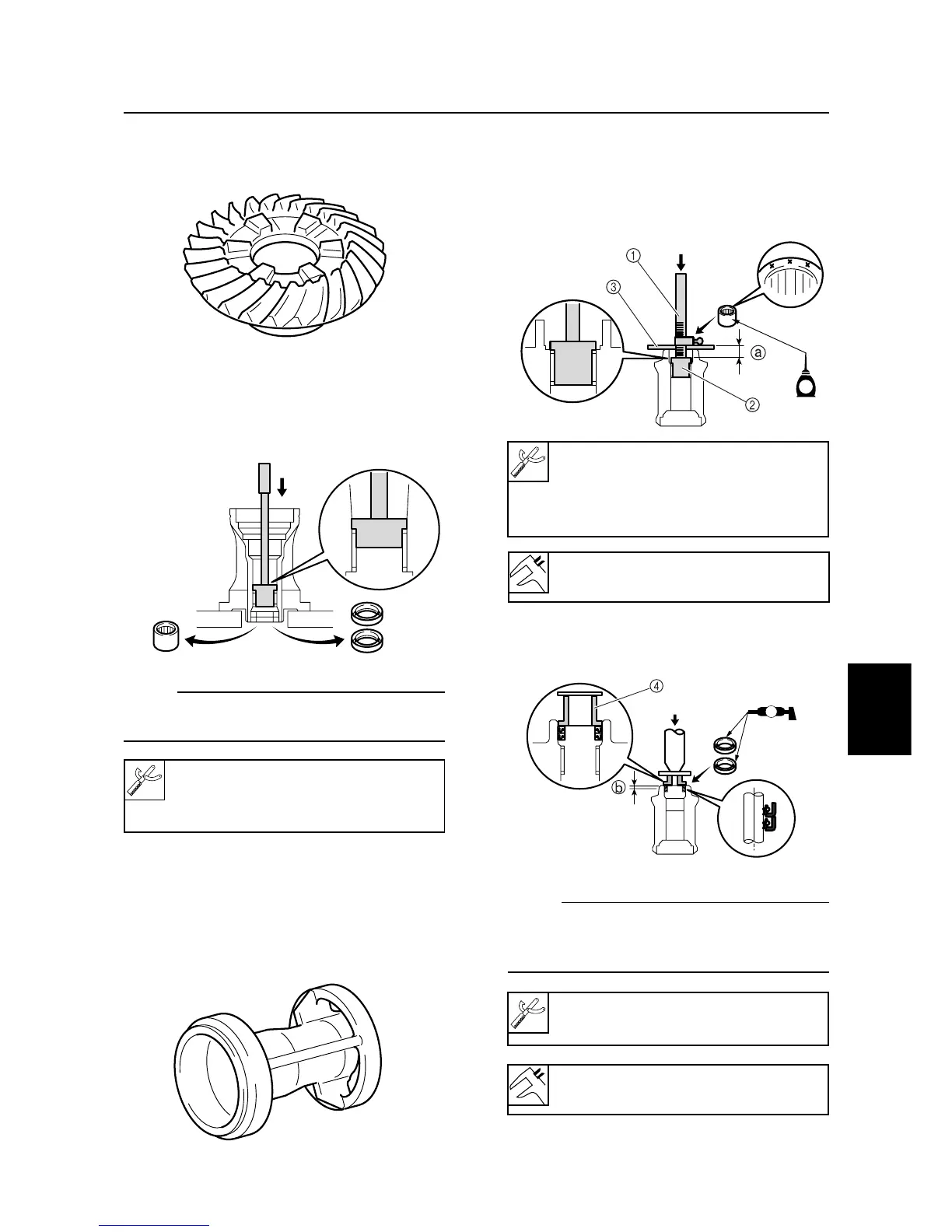

Assembling the propeller shaft and
propeller shaft assembly
1. Install a new needle bearing into the pro-
peller shaft housing to the specified depth
using a press.
60h60200
2. Install the new oil seals into the propeller
shaft housing to the specified depth.
60h60210
NOTE:
First, drive-in the inner oil seal halfway into the
propeller shaft housing, and then drive-in the
outer oil seal to the specified depth.
Propeller shaft, Propeller shaft housing (counter rotation model)
Driver rod L3: 90890-06652
Needle bearing attachment:
90890-06653
5. Check the teeth and dogs of the forward
gear for cracks or wear. Replace the gear
if necessary.
60h60180
Disassembling the propeller shaft
housing assembly
1. Remove the oil seal. Also remove the
needle bearing using a press.
60h60160
NOTE:
When the oil seal or the needle bearing is re-
moved, always replace them with new ones.
Checking the propeller shaft housing
assembly
1. Clean the propeller shaft housing, and
check it for cracks or damage. Replace if
necessary.
60h60170
Installation depth B:
4.75-5.25 mm (0.1870 - 0.2067in)
