60H5E11
Lower unit
LOWR
6-45

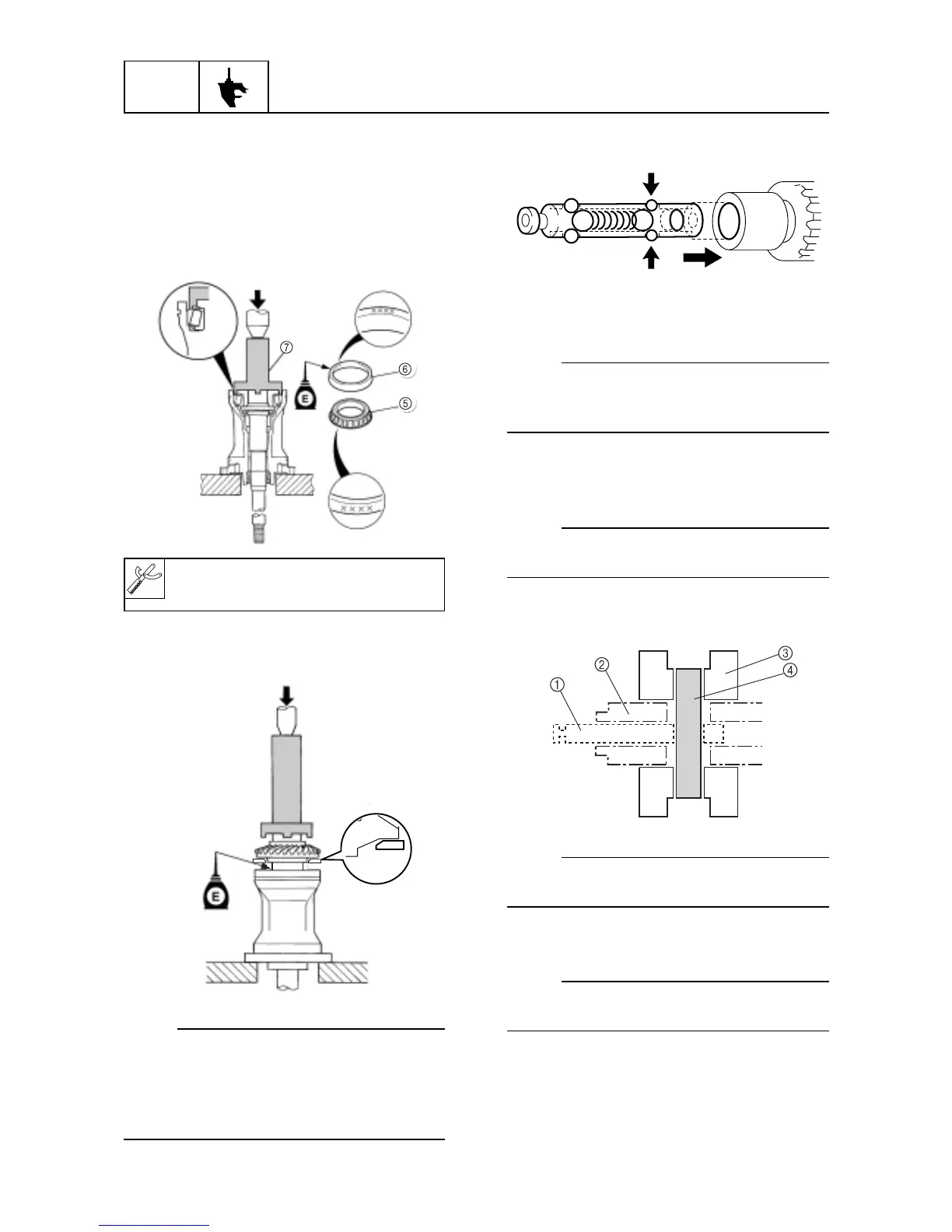

3. Install the propeller shaft shim, the thrust
bearing and the propeller shaft to the pro-
peller shaft housing.
4. Install the taper roller bearing 56 and the
thrust bearing to the propeller shaft hous-
ing.
60h61220
5. Install the forward gear to the propeller shaft
housing sub-assembly.
60h61225
NOTE:
• Place an appropriate plate on the dogs be-
fore using a press to prevent any damage to
the gear teeth.
• Shimming is required when forward gear or
taper roller bearing is replaced.
6. Assemble the slider assembly.
60h60290
NOTE:
It is recommended to apply grease or the like
to the balls to make the assembling work
easier.
7. Insert the slider assembly 1 into the pro-
peller shaft 2.
NOTE:
Make sure that the cross pin holes are aligned
when inserting the slider assembly.
8. Install the dog clutch 3 in the marked ori-
entation, and fit-in the cross-pin 4.
60h60295
NOTE:
A new dog clutch may be installed in either
ways.
9. Install the cross pin ring.
NOTE:
Make sure that the spring is not twisted or over-
laid as installed.
Ring nut wrench 7:
90890-06578
To Next Page
