Yamaha 200A - Ignition System Diagram

60H5E11
8

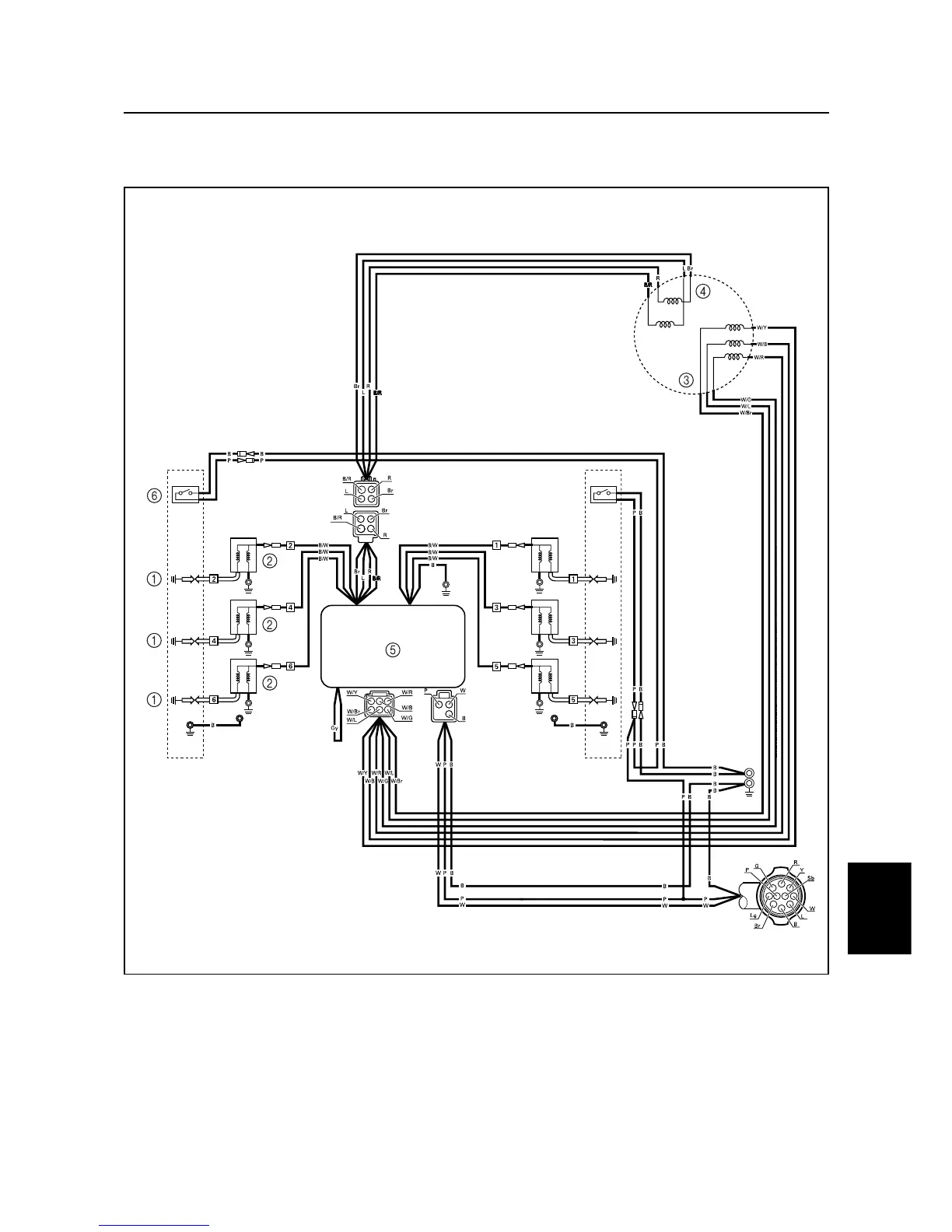

Ignition system
60h80070
1 Spark plug
2 Ignition coil
3 Pulser coil
4 Stator coil
5 CDI unit
6 Thermoswitche
L : Blue
B : Black
Br : Brown
P : Pink
R : Red
W : White
B/R : Black/Red
B/W : Black/White
W/B : White/Black
W/G : White/Green
W/R : White/Red
W/Y : White/Yellow
W/L : White/Blue
W/Br : White/Brown
8-8
Electrical components / Ignition system
