LOWR
E

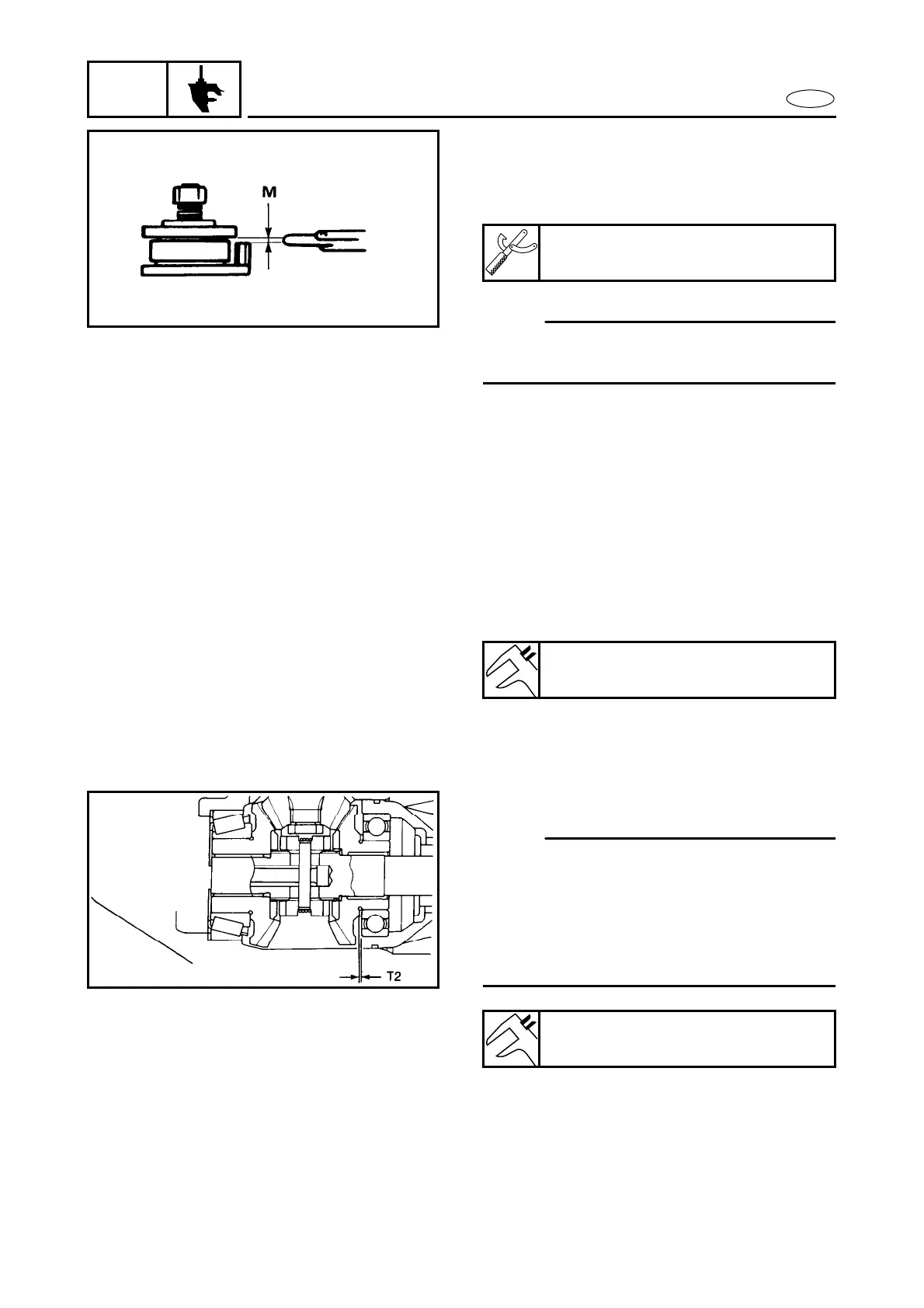

SHIMMING
3. Check:
● Specified measurement (M)
Out of specified measurement →
Adjust.
NOTE:
Check the fit between the shimming gauge
and lower surface of the press plate.
Thickness gauge:
YU-26900-9
4. Adjust:
● Shim(s)
Remove or add.
Available shim thickness:
0.05, 0.08, 0.12, 0.30 and 0.50 mm
Reverse gear shim
NOTE:
● Find reverse gear shim thickness (T2) by
backlash measurement.
● Measure the backlash with the original
shim(s).
● If the original shim(s) is unavailable, start
with a 0.50 mm shim.
Available shim thickness:
0.05, 0.08, 0.12, 0.30 and 0.50 mm
