8.1 Type of Adjustments and Basic Adjustment Procedure
8-9
8
Adjustments
 Starting on a Trigger
Click Start in the Trace main window, and the SigmaWin+ will wait for the trigger.

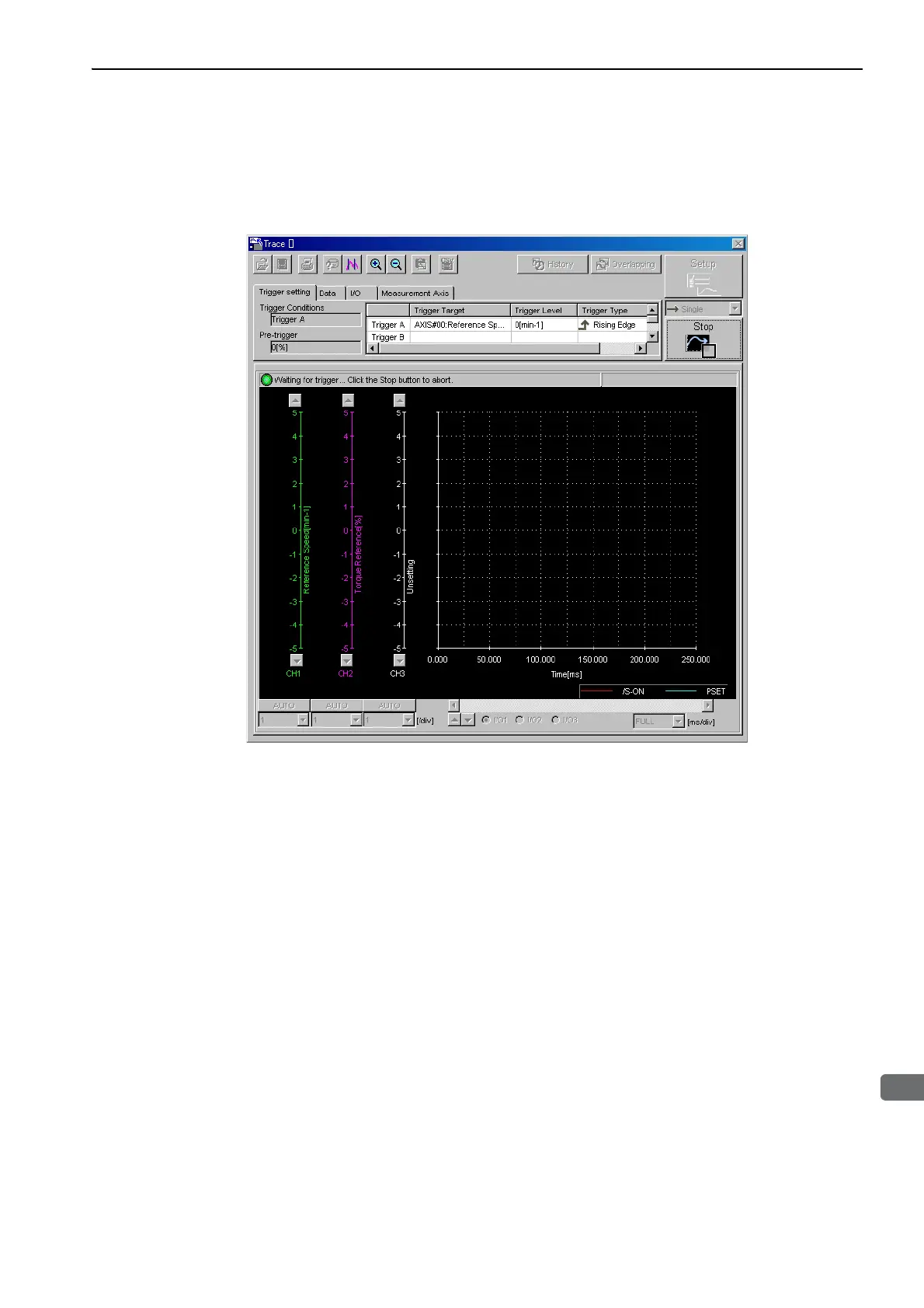

The window below appears while waiting for the trigger.
Dialog Box While Waiting for a Trigger
