Periodic Inspection and Maintenance
8
8.4 Replace Cooling Fans
YASKAWA SIEPYEULA5001C LA500 Technical Manual 213
■ Number of Cooling Fans
Model Cooling Fans
2025 1
4015, 4018 1
■ Remove a Fan
1. Push the tabs toward the back of the drive and pull up to remove the fan finger guard from the drive.
A - Fan finger guard

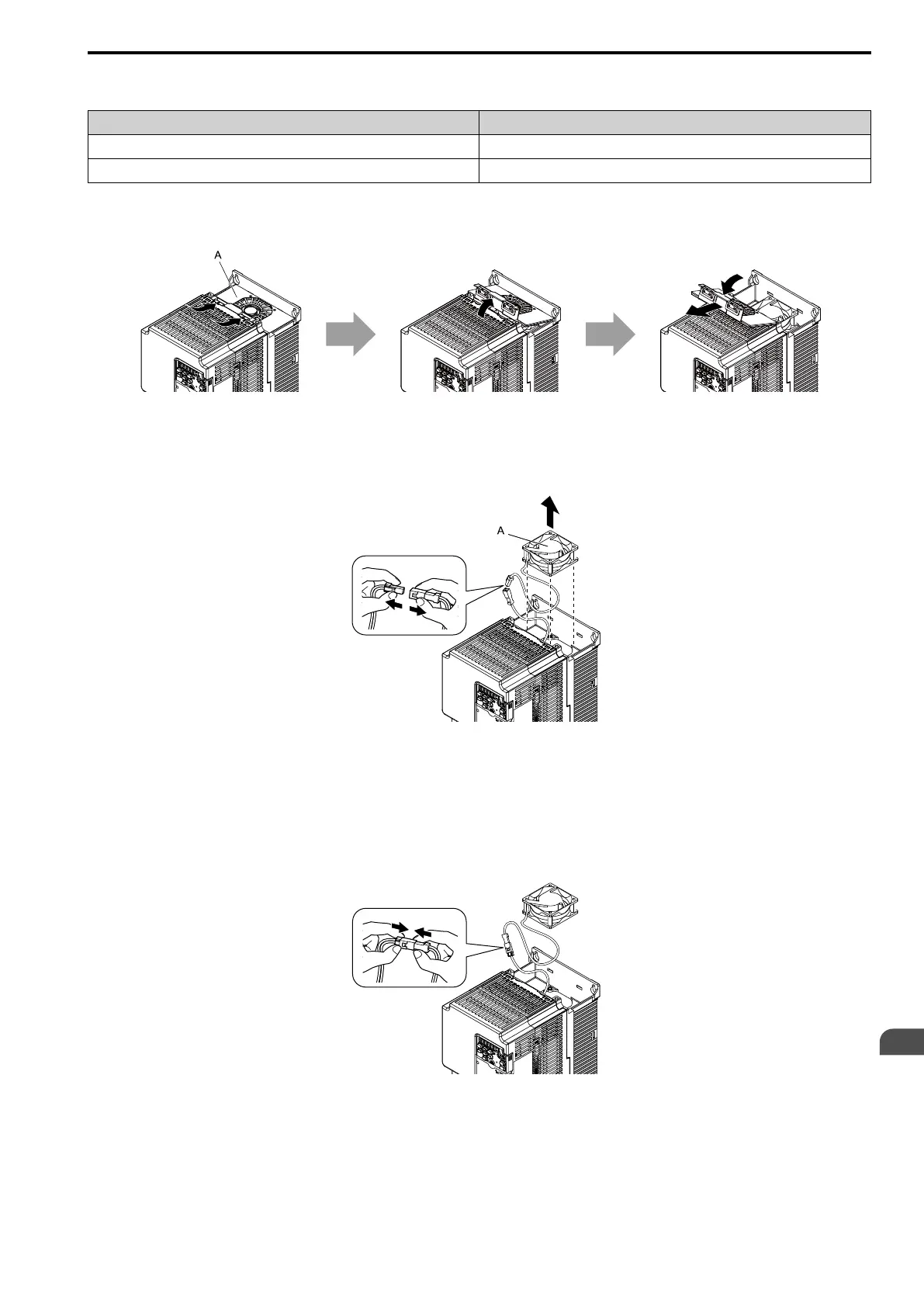

Figure 8.10 Remove the Fan Finger Guard
2. Pull the cooling fan straight up from the drive. Disconnect the power supply connector and remove the fan
from the drive.
A - Cooling fan
Figure 8.11 Remove the Cooling Fan
■ Install the Cooling Fans
Reverse the removal procedure to install a cooling fan.
1. Connect the power supply connector between the drive and cooling fan.
Figure 8.12 Connecting the power supply connector
