3.3 Main Circuit Wiring
46 YASKAWA SIEPYEULA5001C LA500 Technical Manual

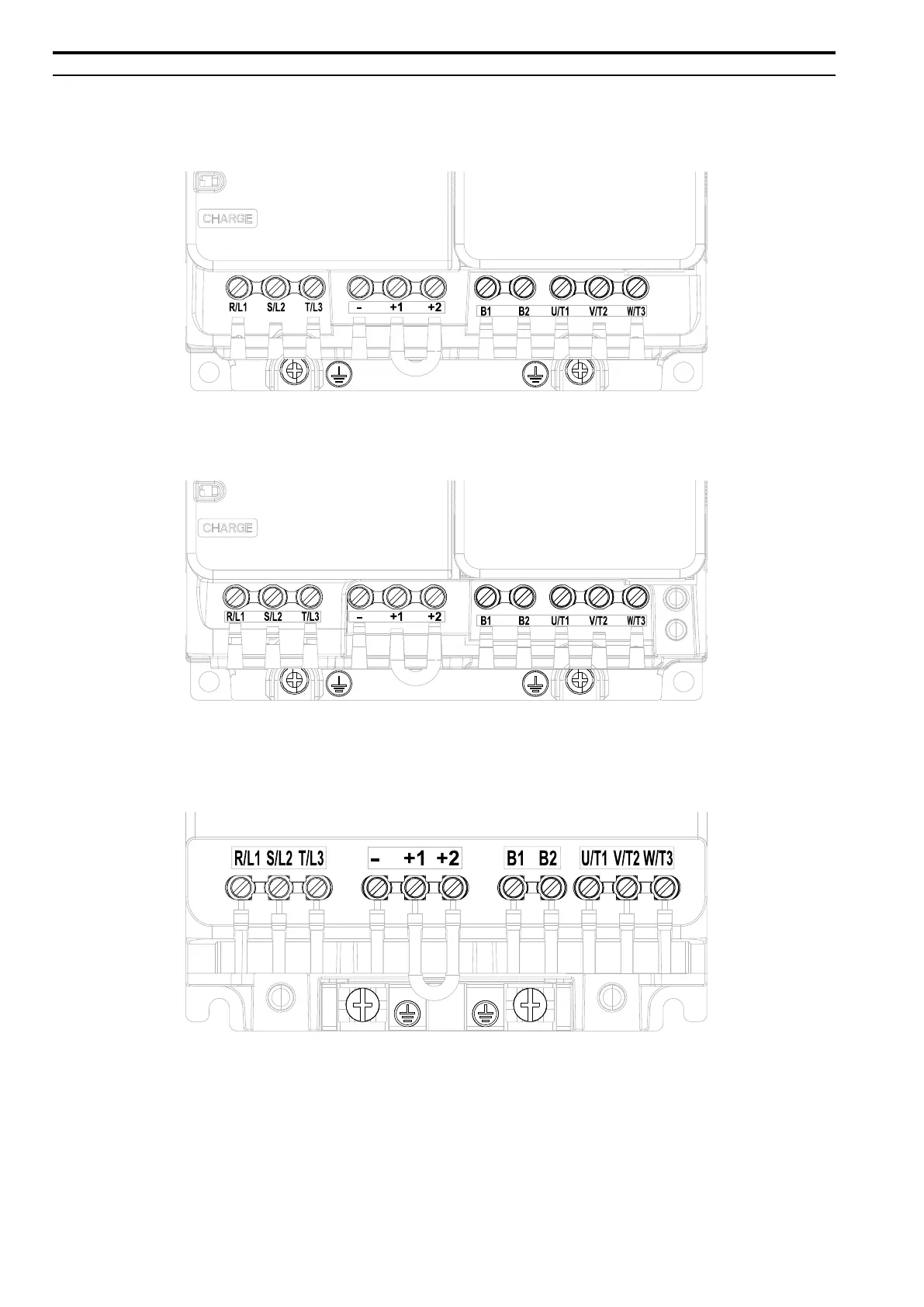

◆ Configuration of Main Circuit Terminal Block
■ Drive Model 4009
Figure 3.3 Configuration of Main Circuit Terminal Block (Three-Phase, Without a Built-in EMC Filter)
Figure 3.4 Configuration of Main Circuit Terminal Block (Three-Phase, With a Built-in EMC Filter)
■ Drive Models 4015, 4018
Figure 3.5 Configuration of Main Circuit Terminal Block (Three-Phase, Without a Built-in EMC Filter)
