2. Pull the left side of the control circuit board out first.

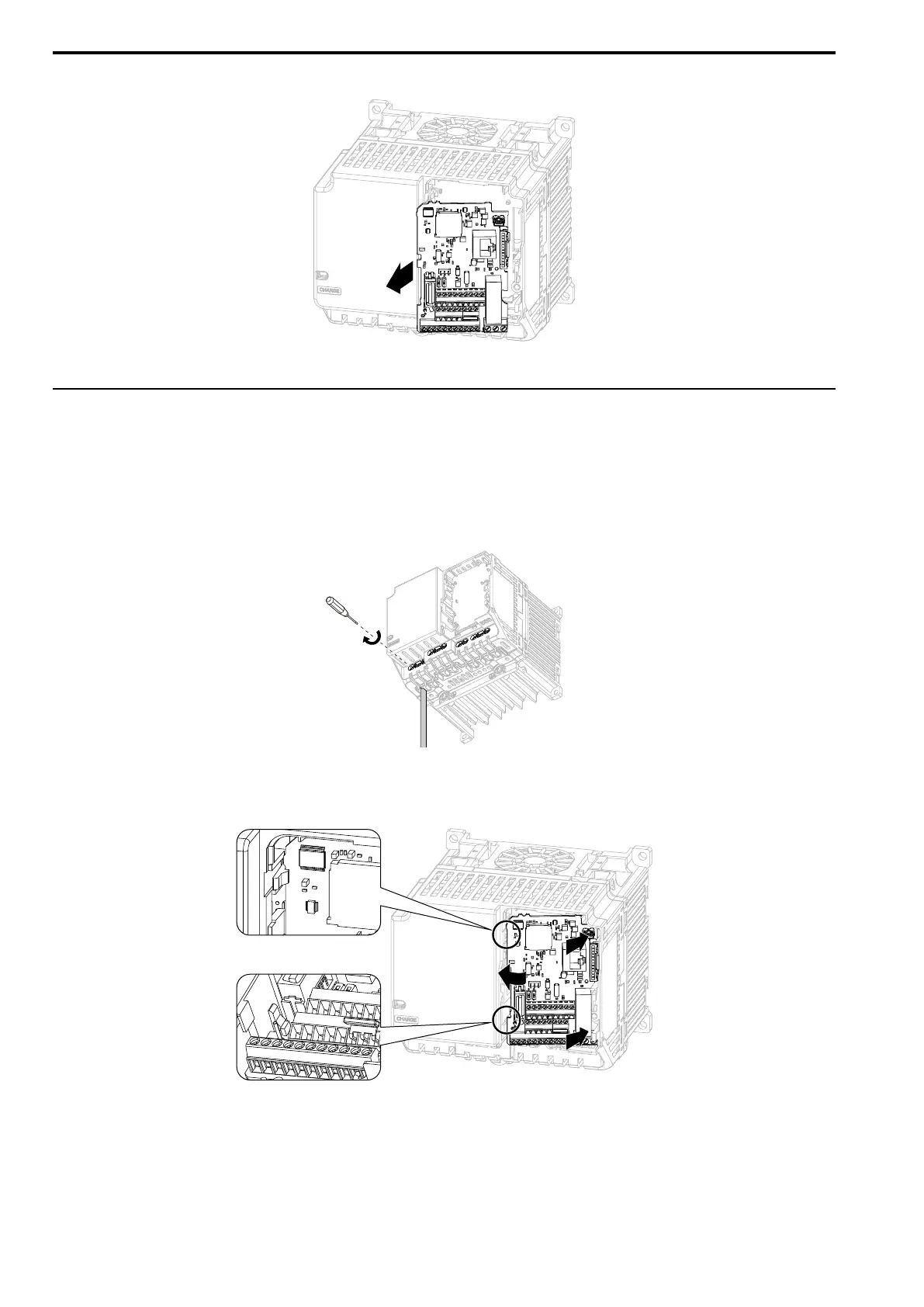

Figure 8.18 Remove the Control Circuit Board
◆ Put the Control Circuit Board in a New Drive
Remove the keypad, front cover, and control circuit board of the new drive.
Wire the main circuit terminals of the new drive, then attach the wired control circuit board.
1. Wire the main circuit terminals.
Note:
To wire terminals +1 and +2, remove the jumper between terminals +1 and +2.
Figure 8.19 Wire the Main Circuit Terminals
2. Attach the wired control circuit board to the drive.
Push the control circuit board until the hooks click into place on the drive.
Figure 8.20 Attach the Control Circuit Board
3. Attach the keypad and front cover to the new drive.
4. Energize the drive and set these parameters:
• o2-04 [Drive Model (KVA) Selection]: Set this parameter to the model number of the new drive.
• o4-01 to o4-13 [Maintenance Period]: Reset the performance life monitors for the components.
