10.5 Drive Exterior and Mounting Dimensions
230 YASKAWA SIEPYEULA5001C LA500 Technical Manual
10.5 Drive Exterior and Mounting Dimensions
◆ IP20/UL Open Type
■ 2018, 4009

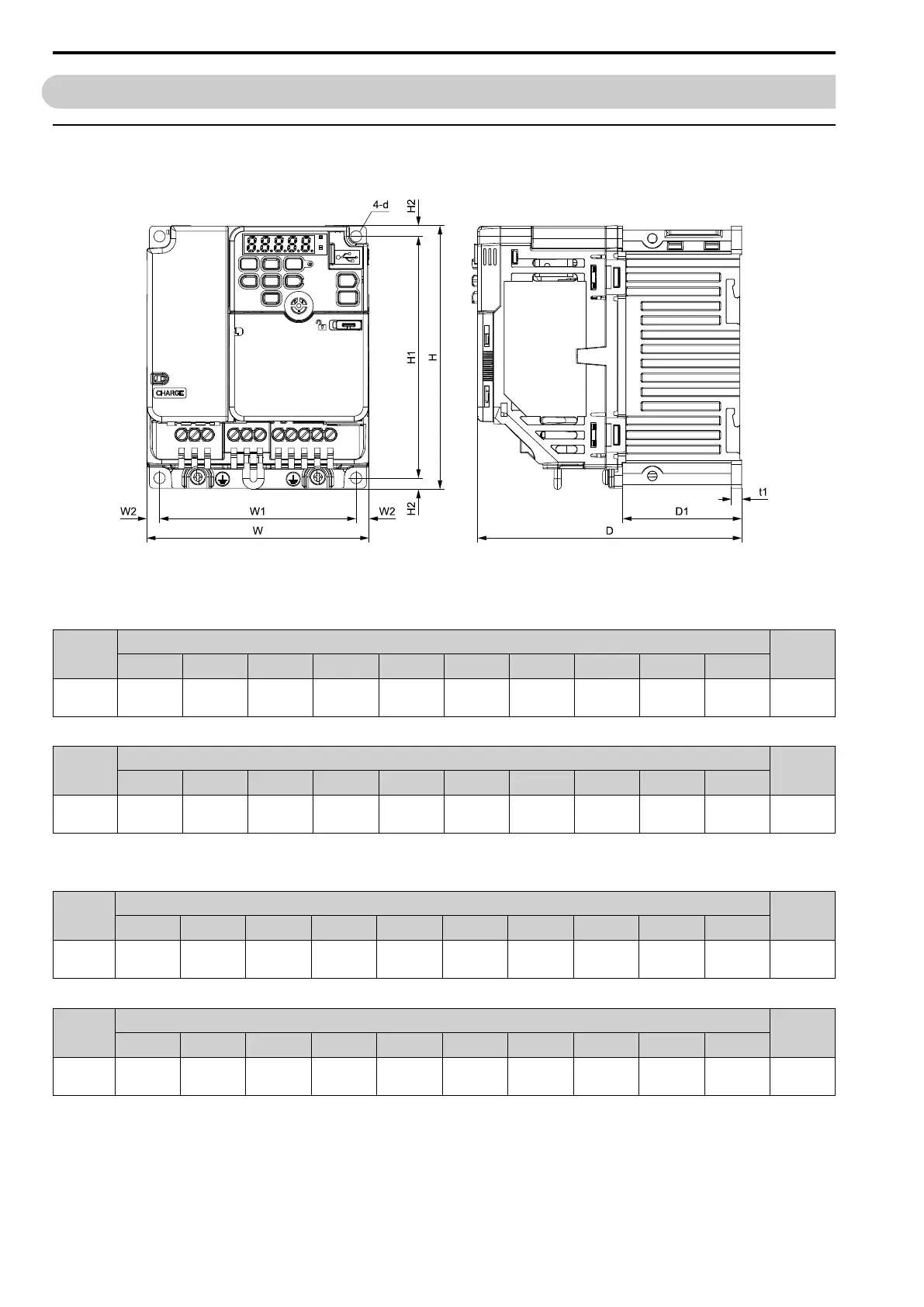

Figure 10.2 Exterior and Mounting Dimensions
Three-Phase 200 V Class
Table 10.7 IP20/UL Open Type, without Built-in EMC Filter
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1 d
2018A
140
(5.51)
128
(5.04)
143
(5.63)
128
(5.04)
6
(0.24)
118
(4.65)
5
(0.20)
65
(2.56)
5
(0.20)
M5
2.0
(4.4)
Table 10.8 IP20/UL Open Type, with Built-in EMC Filter
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1 d
2018E
140
(5.51)
128
(5.04)
193
(7.60)
128
(5.04)
6
(0.24)
118
(4.65)
5
(0.20)
65
(2.56)
5
(0.20)
M5
2.4
(5.3)
Three-Phase 400 V Class
Table 10.9 IP20/UL Open Type, without Built-in EMC Filter
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1 d
4009A
140
(5.51)
128
(5.04)
143
(5.63)
128
(5.04)
6
(0.24)
118
(4.65)
5
(0.20)
65
(2.56)
5
(0.20)
M5
2.0
(4.4)
Table 10.10 IP20/UL Open Type, with Built-in EMC Filter
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1 d
4009E
140
(5.51)
128
(5.04)
193
(7.60)
128.0
(5.04)
6
(0.24)
118
(4.65)
5
(0.20)
65
(2.56)
5
(0.20)
M5
2.6
(5.7)
