12.6 H: Terminal Function Selection
YASKAWA SIEPYEULA5001C LA500 Technical Manual 319
• Capacitor
• Soft charge bypass relay
Note:
Refer to Maintenance on page 208 for more information.
■ 30: During Torque Limit
Setting Value Function Description
30 During Torque Limit
The terminal activates when the torque reference is the torque limit set with L7 parameters.
Note:
Refer to L7: Torque Limit on page 337 for more information.
■ 37: During Frequency Output
Setting Value Function Description
37 During Frequency Output
The terminal activates when the drive outputs frequency.
ON : The drive is outputting frequency.
OFF : The drive is not outputting frequency.
Note:
The terminal deactivates in these conditions:
• During Stop
• During Baseblock
• During DC Injection Braking (initial excitation)
• During Short Circuit Braking
• Pole Position Detection Complete

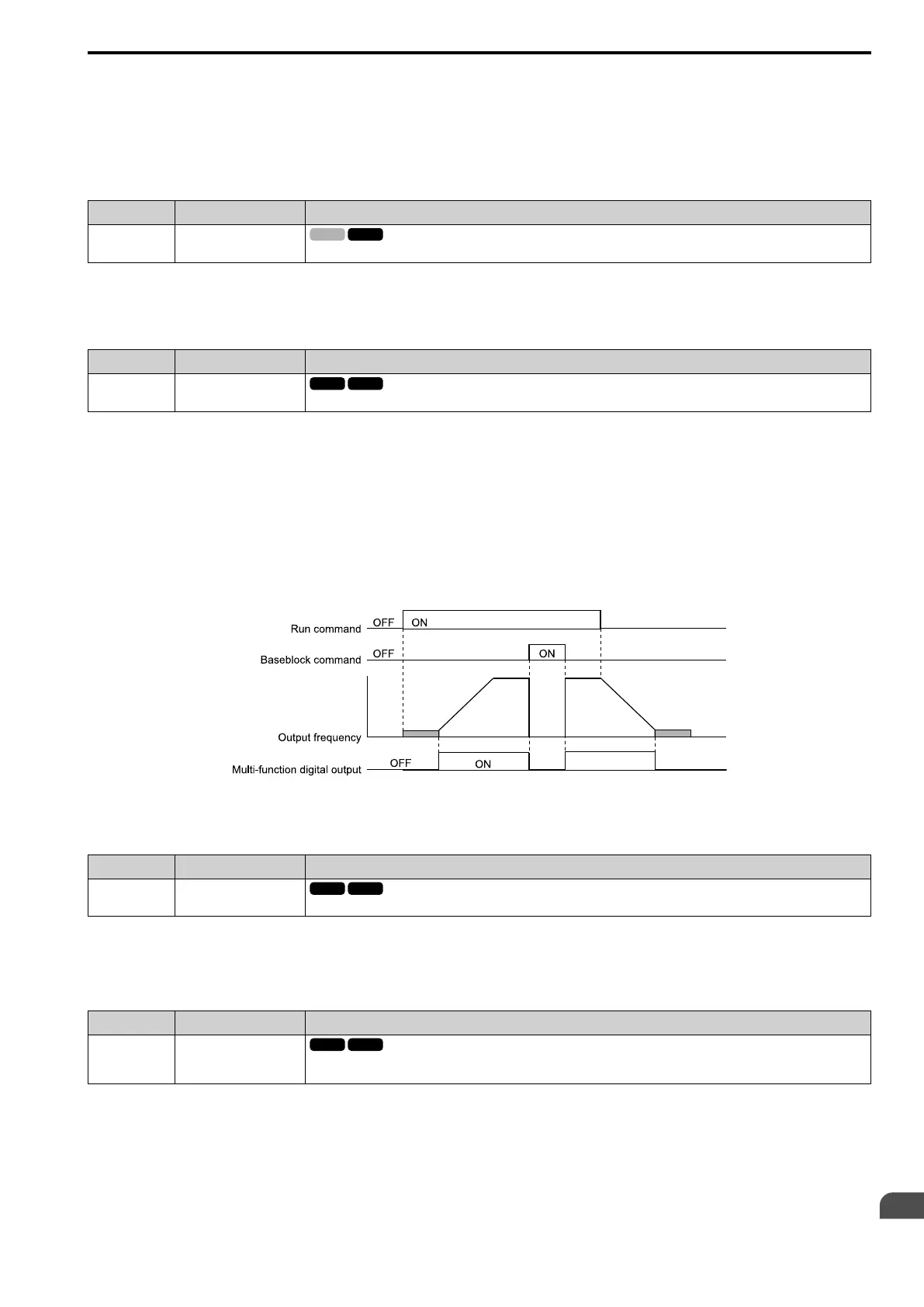

Figure 12.21 Active Frequency Output Time Chart
■ 47: PF Detection
Setting Value Function Description
47 PF Detection
Indicates input phase loss.
0 : No error
1 : Input Phase Loss error detected
■ 50: Brake Control
Setting Value Function Description
50 Brake Control
This setting can be used in the brake sequence for the elevator application. Closing the output terminal should cause the brake to
release, and opening the terminal should apply the brake.
Close : Release brake.
Open : Apply brake
V/f
OLV
V/f
OLV
V/f
OLV
V/f
OLV
