5.3 Monitoring Machine Operation
5.3.3 Realtime Tracing
5-46
Trace Execution Toolbar
Trace Data Settings
Setting the Registers to Trace
Click the Cursor D Icon to display cursor D, and then move it on the graph to display the val-
ues.
Click the Cursor AB Link Icon to lock the horizontal distance between cursors A and B.
Click the Cursor CD Link Icon to lock the vertical distance between cursors C and D.
Click the List Icon to display the Trace List.
Click the Copy Graph Icon to place a screen capture of the graph on the clipboard.
No. Item Description
Trace Target List
Displays a list of the registers that will be traced.
Right-click in the Trace Target List to display the pop-up menu to select or
deselect registers.
Add to Trace adds the selected register to the Trace Target List.
Clear deselects multiple registers that were selected by using the Shift or
the Ctrl Keys.
Select All selects all registers shown on the tab page.
Continued on next page.
Continued from previous page.
Icon Function

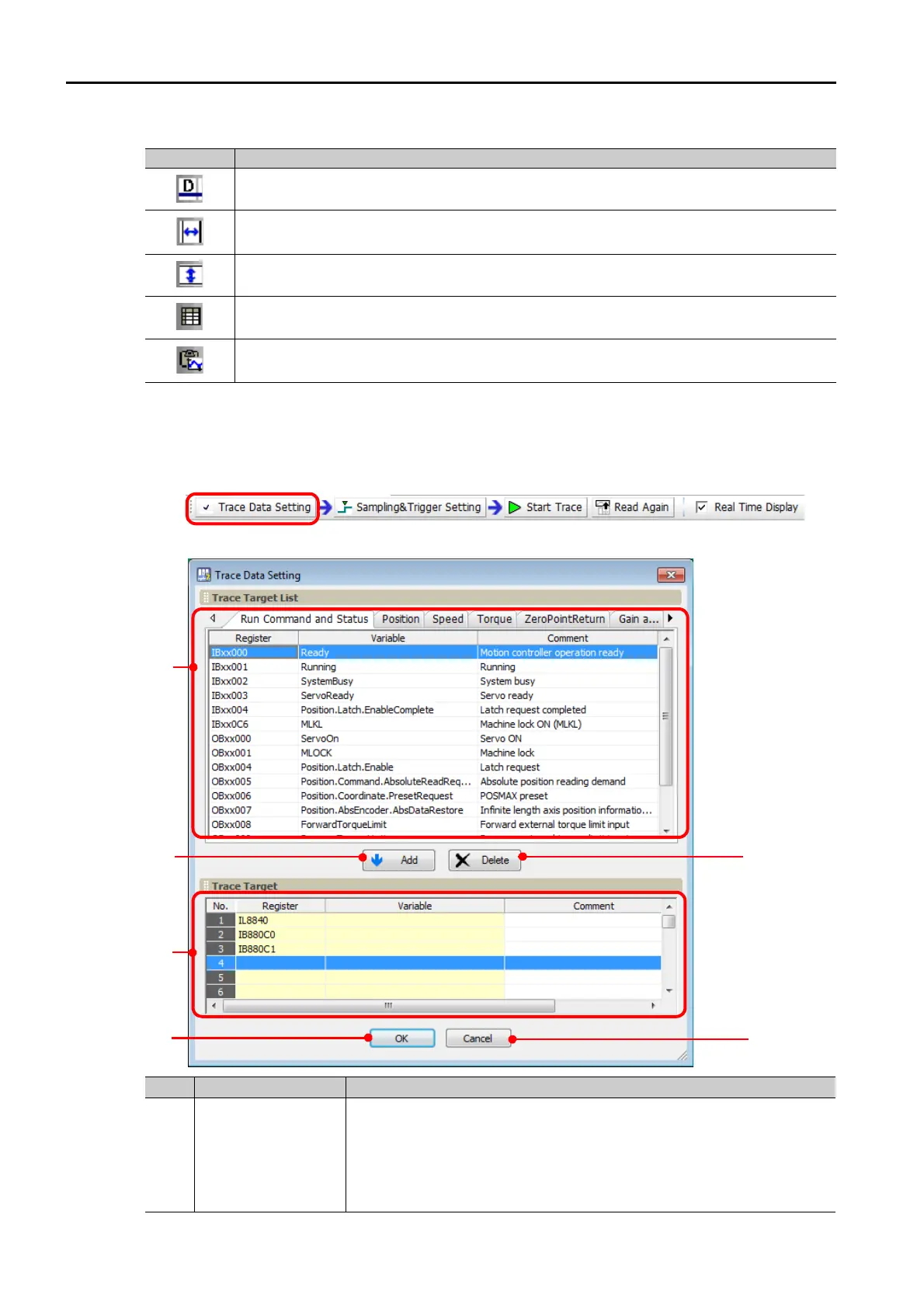

Click the Trace Data Setting Button to display the following dialog box:
