5.3 Monitoring Machine Operation
5.3.3 Realtime Tracing
5-47
Sampling and Trigger Settings
Add Button Use this button to add registers to the Trace Target List.
Delete Button Use this button to delete the selected registers from the Trace Target List.
Trace Target
Displays the trace target registers. You can select the registers from the
Trace Target List, or you can also enter the registers directly.
Right-click in the Trace Target List to display the pop-up menu to edit the
Trace Target List.
Insert the Line inserts a blank row.
Delete the Line deletes a row. If a trace target setting was added, then it will
be deleted.
OK
The OK Button sets the Trace Target, and enables the Sampling & Trigger
Setting Button.
Cancel
The Cancel Button returns you to the Real-Time Trace Dialog Box without
setting the trace target.
No. Item Description
Trace Name
Use this box to specify a name or comment for the trace. You can use up
to 32 characters.
Sampling Setting
Use these options to set the data sampling conditions.
The recommended maximum measurement time will be displayed.
Continued on next page.
Continued from previous page.
No. Item Description
This dialog box is used to set the trace name, the sampling settings, and the trig-
ger setting parameters.

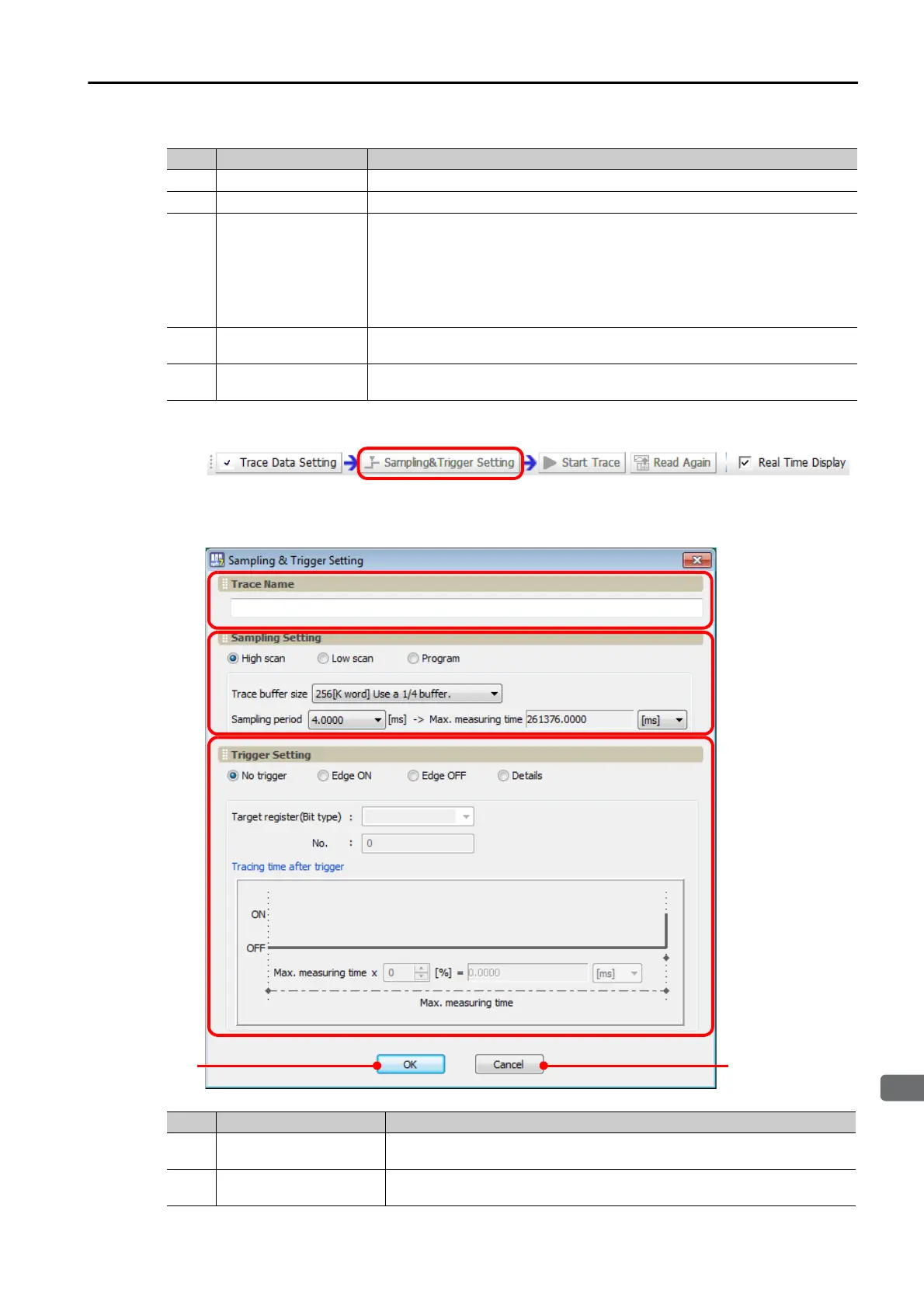

Click the Sampling & Trigger Setting Button to display the following dialog box:
