Table 4.6.1 Connecting device and Applicable
maximum cable length (guideline)
Connecting device
Maximum length of cable
(rough guideline)
Name Model
Cable
with cross
section of
2 mm
2
Cable
with cross
section of
1.25 mm
2
Signal
Conditioner
Card
EA1
EA2
2 km 2 km
I/O Module
AAM11
AAM11B
2 km 2 km
Analog I/O
Module
(for FIO)
AAI143 2 km 2 km
AAI141
AAI841
AAI135
AAI835
Not applicable Not applicable
Analog I/O
Module (for
Prosafe-RS)
SAI143 1.4 km 0.8 km
Distributor
SDBT
SDBS
2 km 2 km
JUXTA
VJA1
2 km 2 kmVJA4
VJA7
Communication Requirement:
BRAIN
Communication signal:
BRAIN communication signal
(superimposed on 4 to 20 mA DC signals)
Conditions of Communication Line:
Supply Voltage: 20.6 to 42 V DC
 LoadResistance:250to600Ω
(including cable resistance)
Read Figure 4.6.3.
Communication Distance:
Up to a distance of 2km when a CEV cable is
used (Read Table 4.6.2 to Table 4.6.7)
LoadCapacitance:0.22μForless
Load Inductance: 3.3 mH or less
Distance from other Power line:
15 cm (6 in.) or more (Avoid parallel wiring)
Input Impedance of Communicating Device:
10kΩormoreat2.4kHz
600
250
14.7 20.6 28.9 42
Power supply voltage E (V DC)
R=
0.0236
E−14.7
F0416.ai
Digital
Communication
Range
(BRAIN or HART)
External
Load
Resistance
R (Ω)

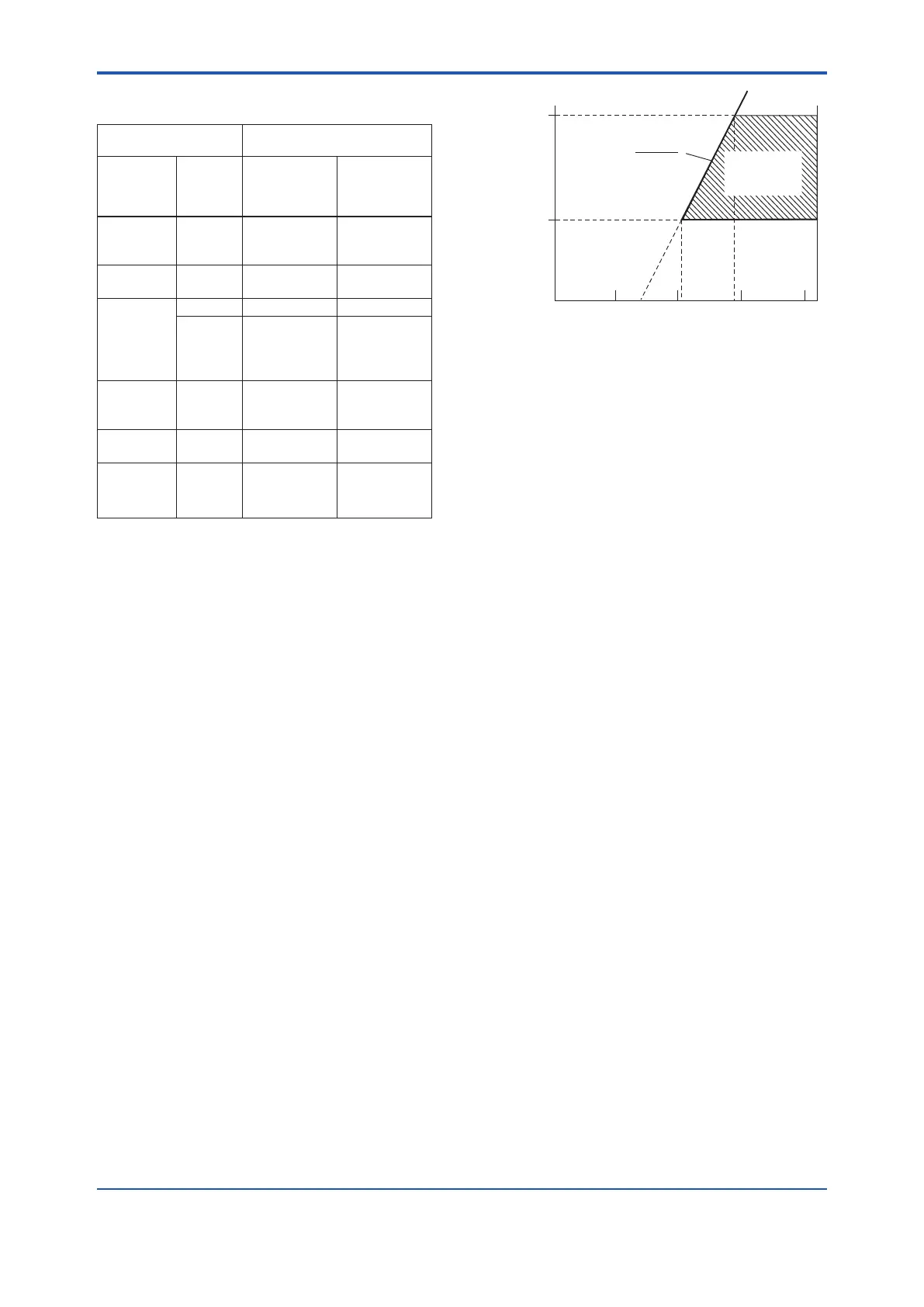

Figure 4.6.3 Relationship between Power supply
voltage and external load resistance
HART
Communication signal:
HART communication signal (superimposed
on 4 to 20 mA DC signals)
Note: HART is a registered trademark of the FieldComm
Group. Use the setting tool that has the same
protocolrevisionasAXR.Itisnotpossibleto
communicatewithHART7AXRinusingHART5or
HART 6 setting tool.
Conditions of Communication Line:
Supply Voltage: 20.6 to 42 V DC
 LoadResistance:250to600Ω
(including cable resistance)
Read Figure 4.6.3.
HART Protocol Revision
HART protocol revision can be selected from 5 or
7 when ordering. (“-J” only)
The protocol revision can be changed by user
conguration.
The HART protocol revision at the time of
shipment is shown by the last number at the
serial number column of the name plate.
Note: ProtocolrevisionsupportedbyHARTcongura-
tion tool must be the same or higher than that of
AXR.
